| 型號(PratNumber) | IT6563 |
| 數量(QTY.) | 12000 |
| 廠家(Brand) | ITE |
| 封裝(Package) | QFN-56 |
| 批號(DC.) | 最新 |
| 聯系人(contact) | 顏先生/William |
| 電話(contact) | 0755-82170220,21001680 |
| PDF(PDF.) |
|
| 詢價(Inquire) |

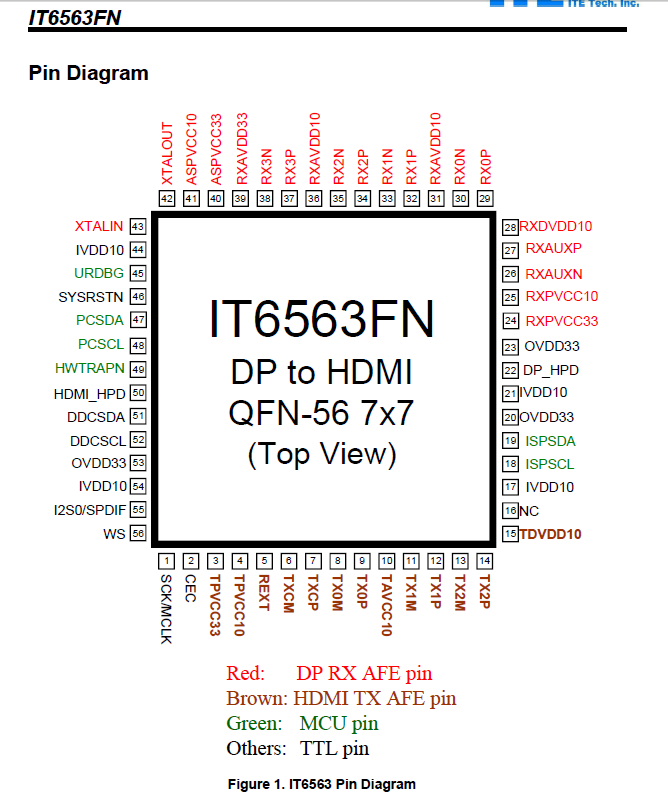

IT6563
Single Chip 4 Lane DisplayPort1.2 to HDMI2.0 Converter with
Embedded MCU
VL103+IT6563：Type-C轉HDMI 科瑞芯公司熱銷！
2. Features
2.1 DisplayPort Receiver
Compliance with DisplayPort Specification V1.2a at 1.62/2.7/5.4 Gbps data rate (Low bit
rate/High bit rate/High bit rate 2)
Support flexible 1/2/4 lanes configurations; Full 21.6Gbps data rate support (4 lanes at
5.4Gbps)
Support DPCD Rev.1.2
Support metadata transport for static High Dynamic Range (HDR)
Support HDCP 1.3/2.2 with HDCP key embedded
Support MCCS over AUX
Support 3D display left/right field/frame
Support Spread Spectrum Clocking up to 0.5% down-spread to reduce EMI
Bi-direction Color Space Conversion (CSC) between RGB and YCbCr color spaces with
programmable coefficients.
Support 8-channel, uncompressed LPCM I2S audio with sample rates of 32~192 kHz and
sample sizes of 16~24 bits, and HBR audio.
Automatic loss of signal detection for Link management
Intelligent, programmable power management
Embedded two blocks EDID RAM to saving BOM cost
Compliance with “DP only” or “DP++” source device
| 型號(PartNumber) | 數量(QTY.) | 廠家(Brand) | 封裝(Package) | 批號(DC.) | 描述(Description) | |
| DLP0NSA070HL2 | 70000 | muRata/村田 | SMD | 25+ | 供應muRata/村田DLP0NSA070HL2共模靜噪濾波器。深圳市科瑞芯電子有限公司提供完整技術 |
|
| G948C3180T11G | 65000 | GMT/致新 | SOT-23-5 | 25+ | G948是一款低電源電流、低壓差線性穩(wěn)壓器，是筆記本電腦和便攜式設備等電池供電應用的理想選擇。深圳市 |
|
| G948C3330T11G | 60000 | GMT/致新 | SOT-23-5 | 25+ | 致新科技G948C3330T11G——300mA低壓差線性穩(wěn)壓器，適用于筆記本電腦、便攜式設備和手持 |
|
| G948C3180TO1G | 55000 | GMT/致新 | TSOT-23-5 | 25+ | 致新科技G948C3180TO1G——300mA低壓差線性穩(wěn)壓器，適用于筆記本電腦、便攜式設備和手持 |
|
| G2253RV1U | 45000 | GMT/致新 | TQFN4x4-28 | 25+ | 致新科技G2253RV1U，4+2CH PMU用于可穿戴/運動CAM和IP-CAM應用，適用于可穿戴 |
|
| SC3057QDSR | 40000 | SOUTHCHIP/南芯 | QFN6x8-30 | 25+ | 南芯半導體SC3057QDSR，GaN集成高頻準諧振反激變換器，適用于USB-PD和QC充電器和應用 |
|
