光電晶體管耦合器 MPCM3052 喆光照明 原廠原裝

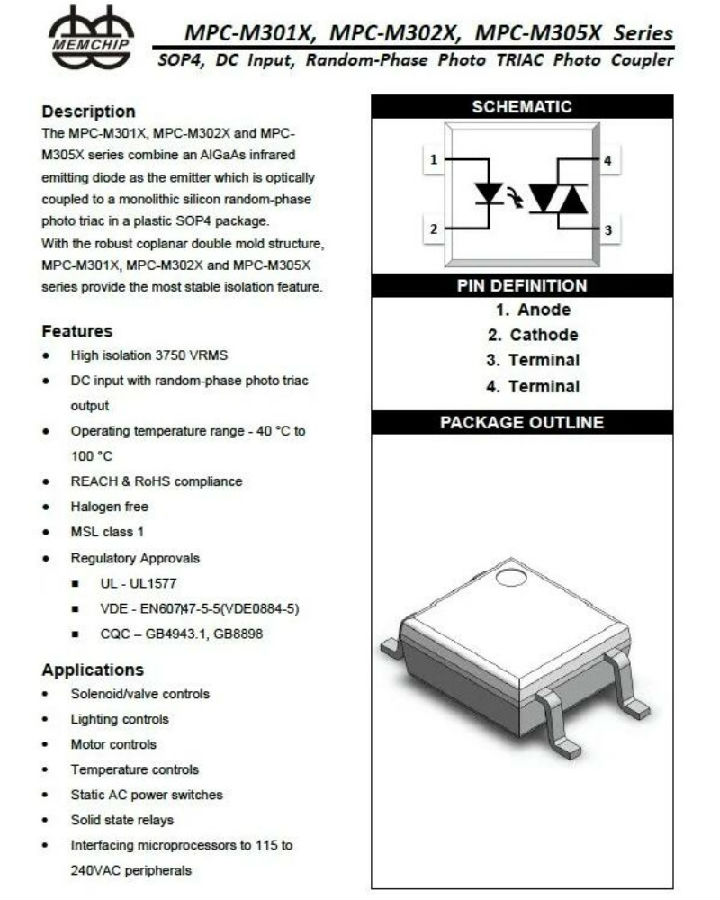

Description
The MPCM305X series combine an AlGaAs infrared emitting diode as the emitter which is optically coupled to a monolithic silicon random-phase photo triac in a plastic SOP4 package. With the robust coplanar double mold structure, MPC-M301X,MPC-M302Xand MPC-M305X series provide the most stable isolation feature.
Features
● High isolation 3750 VRMS
● DC input with random-phase photo triac output
● Operating temperature range- 40 °C to 100°C
● REACH & RoHS compliance
● Hallogen free
● MSL class 1
● Regulatory Approvals
■ UL- UL1577
■ VDE - EN60747-5-5(VDE0884-5)
■ CQC- GB4943.1, G8B8898
