南芯無線發(fā)射器芯片 SC5008QFNR 科瑞芯熱銷

Features

Input voltage range: 3.2V-17V

Support up to 15W power transfer

Integrated four 12mohm RDS(on) power MOSFETs

Integrated FET drivers and bootstrap circuits

Integrated 5V-100mA and 3.3V-80mA LDOs

Integrated accurate current sense for FOD

Integrated voltage and current demodulators

Compatible with 3.3V and 5V PWM logical signals

Support various types of power transmitter design in the WPC V1.3.2

UVLO/OCP/SCP/OTP

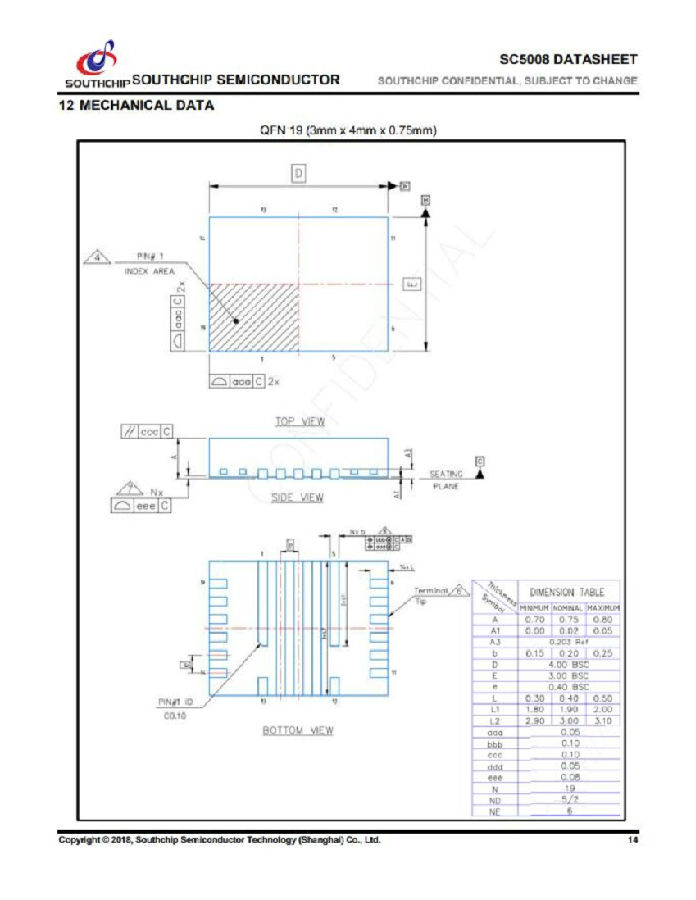

3mm x 4mm QFN package

Applications

WPC Compliant Wireless Power Transmitters

Proprietary Wireless Power Transmitters

General Wireless Power Chargers for Consumer, Industrial and Medical Applications
