GMT致新 G509L30DP81G 電源開關(guān)芯片

General Description

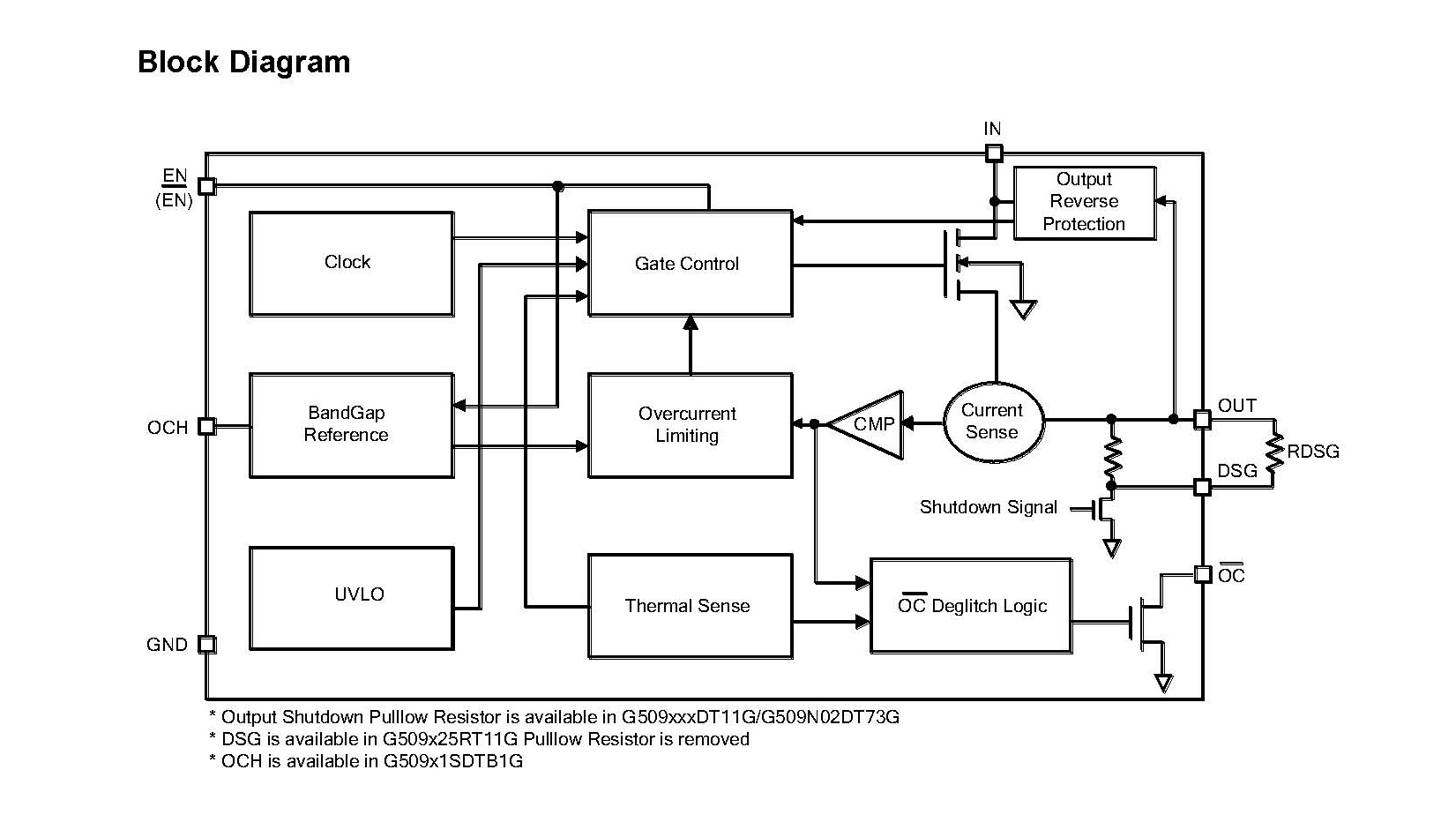

The G509 is an integrated power switch for self-powered and bus-powered Universal Serial Bus (USB) applications. G509xxxxT11G and G509x25DTB1G are 67mΩ RDS(ON). In addition, G509N02DT73G is 120mΩ RDS(ON). Moreover, G509x3xDxx1G is 37mΩ RDS(ON). Several Protection features include current limiting and thermal shutdown to prevent catastrophic switch failure caused by increasing power dissipation when continuous heavy loads or short circuit occurs. A built-in charge pump is used to drive the N-channel MOSFET that is free of parasitic body diode to eliminate any reversed current flow across the switch when it is powered off. When the output voltage is higher than input voltage, the power switch is turned off by internal output reverse protection comparator.

OC is an open-drain output report over-current or over-temperature event and has typical 9ms deglitch timeout period. In addition, output reverse protection occurs with typical 5ms (1.25ms) deglitch timeout period in G509xxxxT11G, G509x1SDTB1G, and G509N02DT73G (G509x3xDxx1G).

Features

● 67mΩ High-Side MOSFET(G509xxxxT11G, G509x1SDTB1G)

● 120mΩ High-Side MOSFET(G509N02DT73G)

● 37mΩ High-Side MOSFET(G509x3xDxx1G)

● Available with 9 Versions of Current Limits with Fold-back.

● Operating Range:2.7V to 5.5V

● 2mS Typical Rise Time

● Fast Over Current Response 1.5μs (TYPICAL)

● Under Voltage Lockout

● 130μA Quiescent Supply Current

● 1μA Maximum Shutdown Supply Current

● Logic Level Enable Pin. Available with Active-High, Active-Low, or Enable Selection Versions

● No Reverse Current when Power Off

● Deglitched Open-Drain Over-Current Flag Output (OC )

● Available with or without Output Shutdown Pull-low Resistor

● Output Reverse Protection when Power ON

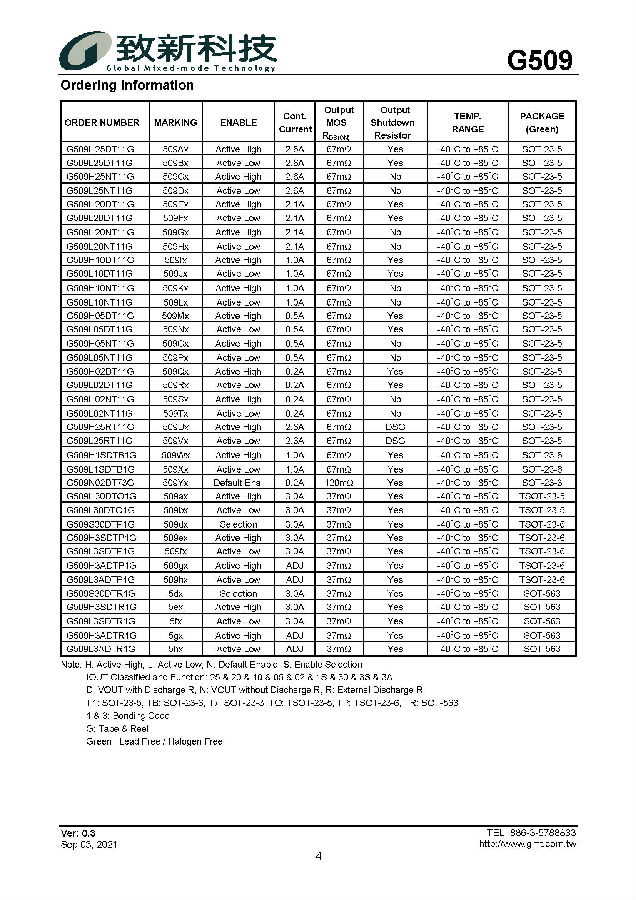

● G509xxxxT11G SOT-23-5 Package

● G509x25DTB1G SOT-23-6 Package

● G509N02DT73G SOT-23-3 Package

● G509x30DTO1G TSOT-23-5 Package

● G509xxxDTP1G TSOT-23-6 Package

● G509xxxDTR1G SOT-563 Package

● UL 2367 Recognition-File NO. E232223

● IEC 62368-1 Certified

Applications

High-Side Power Protection Switch

USB Power Management

USB Host and Self-Powered Hubs

USB Bus-Powered Hubs

Hot Plug-In Power Supplies

Battery-Charger Circuits
