芯洲原裝 SCT2250 高效同步降壓DCDC轉(zhuǎn)換器

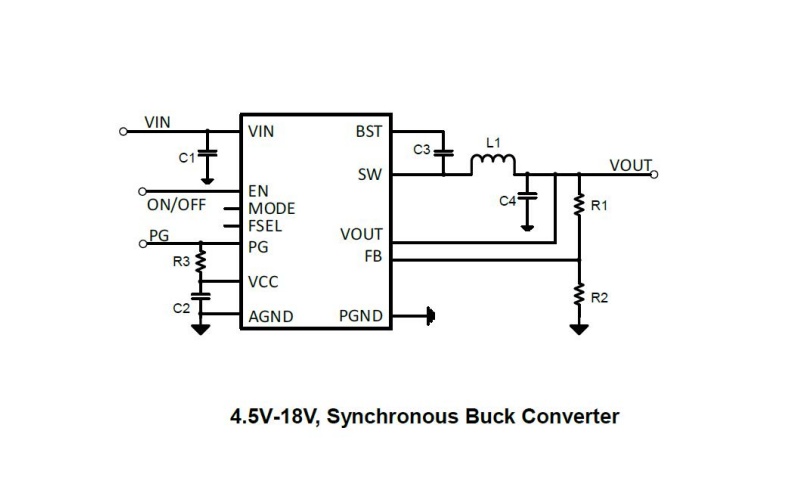

DESCRIPTION
The SCT2250 is a high efficiency synchronous stepdown DC-DC converter with 4.5V-18V input voltage range and adjustable output voltage down to 0.6V. It offers a small space-saving 2mmx3mm QFN package that supplies continuous 5A output current. The device fully integrates high-side and low-side power MOSFETs with 42mΩ/17mΩ on-resistance to minimize the conduction loss.

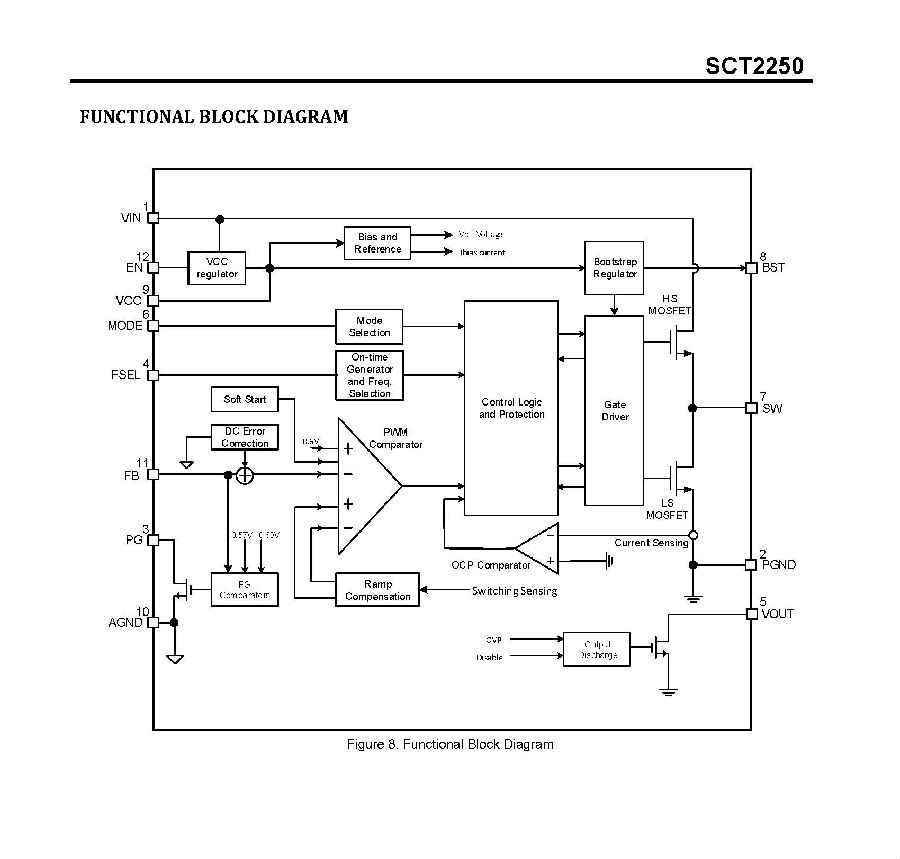

The SCT2250 adopts a Constant On-Time (COT) control to provide fast transient response and easy loop stabilization. The switching clock frequency can be selected from 400KHz, 800KHz and 1.2MHz for optimization of the filter size and output voltage ripple.
The device offers soft start to prevent inrush current during the startup of output voltage ramping. Power Good with open drain output signals that the output voltage is within regulation.
The SCT2250 has the MODE pin to select Pulse Frequency Modulation (PFM) operation mode to achieve the light load power save, or Ultrasonic Mode (USM) to keep the switching frequency above audible frequency areas during light-load or no-load conditions, or forced Pulse Width Modulation (PWM) to achieve smaller output ripple.
Full protection includes over current protection, undervoltage protection, and thermal shutdown.
The converter requires a minimum number of external components and is available in a 12 pin (2mmx3mm) QFN package.
FEATURES
● Wide 4.5V -18V Input Voltage Range
● 0.6V-7V Output Voltage Range
● 5A Continuous Output Current
● Integrated 42mΩ/17mΩ HS/LS Power MOSFETs
● Fixed 1ms Soft-start Time
● Selectable 400KHz, 800KHz and 1.2MHz Switching Frequencies
● Selectable PFM and USM Operation Modes
● Cycle-by-Cycle Current Limiting
● Output Over-Voltage Protection
● Over-Temperature Protection
● 12-pin 2mmx3mm QFN Package
