XB7608A 賽芯微CPC-5 一體化鋰電池保護(hù)芯片

GENERAL DESCRIPTION

The XB7608A series product is a high integration solution for lithiumion/ polymer battery protection.

XB7608A contains advanced power MOSFET, high-accuracy voltage detection circuits and delay circuits.

XB7608A is put into an ultra-small CPC5 package and only one external component makes it an ideal solution in limited space of battery pack.

XB7608A has all the protection functions required in the battery application including overcharging, overdischarging, overcurrent and load short circuiting protection etc. The accurate overcharging detection voltage ensures safe and full utilization charging. The low standby current drains little current from the cell while in storage.

The device is not only targeted for digital cellular phones, but also for any other Li-Ion and Li-Poly battery-powered information appliances requiring longterm battery life.

FEATURES

● Protection of Charger Reverse Connection

● Protection of Battery Cell Reverse Connection

● Integrate Advanced Power MOSFET with Equivalent of 14.5mΩ RSS(ON)

● Ultra-small CPC5 Package

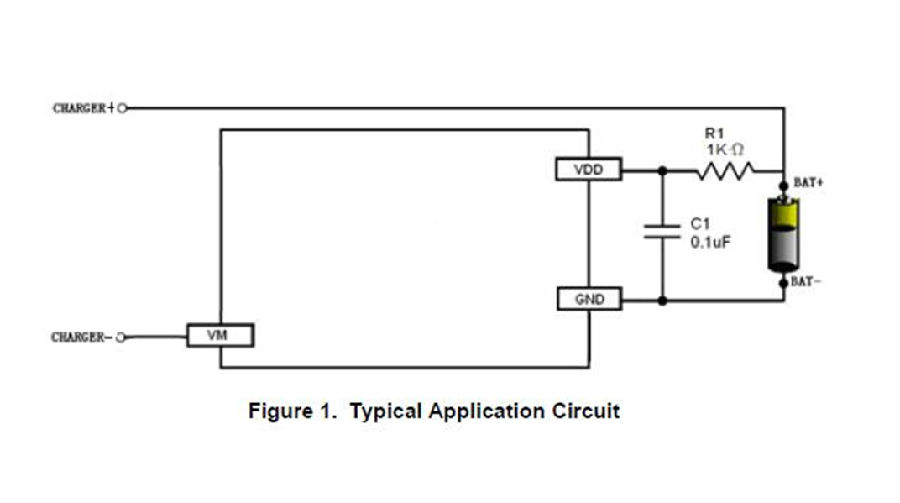

● Only One External Capacitor Required

● Over-temperature Protection

● Overcharge Current Protection

● Two-step Overcurrent Detection:

Overdischarge Current

Load Short Circuiting

● Charger Detection Function

● 0V Battery Charging Function

Delay Times are generated inside

● High-accuracy Voltage Detection

● Low Current Consumption

Operation Mode: 3.9μ A typ.

Power-down Mode: 2.2μ A typ.

● RoHS Compliant and Lead (Pb) Free

APPLICATIONS

One-Cell Lithium-ion Battery Pack

Lithium-Polymer Battery Pack
