產品詳情

超低電流消耗和低差線性穩壓器-G2260-330N61U--致新正品保障

品牌：GMT/致新

型號：G2260-330N61U

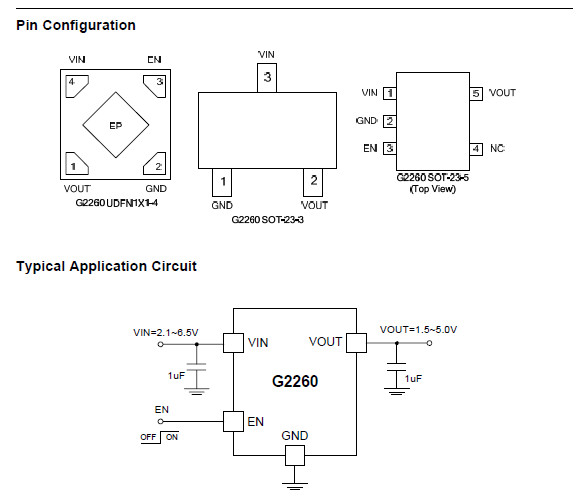

封裝：UDFN1X1-4

一般的描述

G2260是一款低差線性穩壓器，具有超低電流消耗和高輸出電壓jing度�？蛰d時的電源電流一般為1μA。內置低導通電阻，實現低壓降和高輸出電流。zui小輸出電流限制設置為250mA。G2260采用小至0.1μF的I/O電容，采用節省空間的SOT-23-3、SOT-23-5和UDFN1X1-4封裝。

特性

空載電源電流一般為1μA

保證250mA輸出電流(3.0V輸出)

@ vin≧vout + 1v

輸入電壓范圍:2.1V~6.5V

輸出電壓1.5V ~ 5.0V

壓降電壓150mV @ 100mA負載

內置過流保護

穩定與低成本的陶瓷電容器

應用程序

電池供電設備的電源

移動電話和其他便攜式設備
