G2258TM1U-電流感應比較器-GMT原廠原裝

一般的描述

G2258是一款高共模電壓感應比較器，通過測量電源MOS上的電壓來檢測過流狀況。該設備在與電源電壓無關的共模電壓下測量該差分電壓信號，共模電壓可以從0V變化到0.3V。設備上的開漏FLAG輸出可以配置為提示低電流檢測。

G2258采用2.5V ~ 5.5V單路供電，正常工作時zui大供電電流為350μA。在待機狀態下，G2258的zui大供電電流為50uA。G2258器件的指定工作溫度范圍為-40°C至+125°C，可采用SOT-23-6和SOT-23-8封裝。

特性

0.3V zui大額定輸入電壓

小電流檢測

5mA電流檢測

USB設備插件檢測

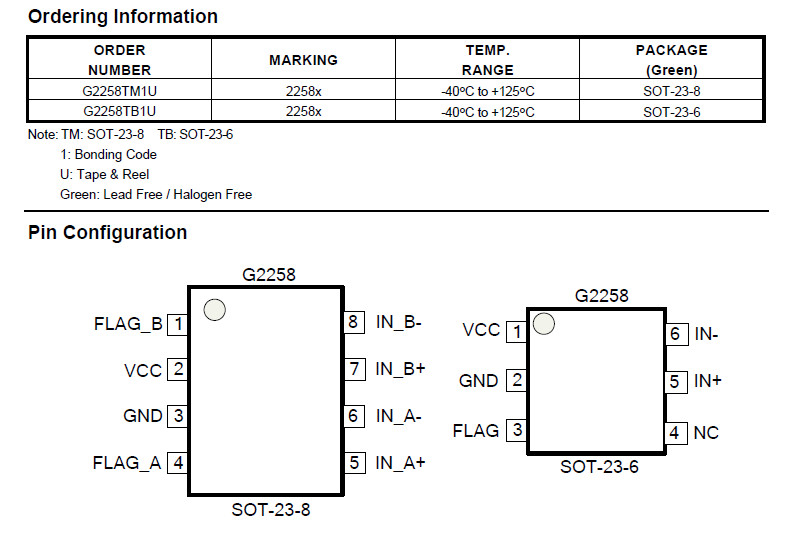

可提供SOT-23-6(單通道)和SOT-23-8(雙通道)封裝
