ETA5041 電子元器件 ETA（鈺泰） 封裝SOT23-5 可替代TLV709
45V Input Voltage, 2.5uA Ultra-low Iq, 300mA LDO in SOT23-5
ETA5041 is a low-dropout (LDO) linear voltage regulator that features ultra-low standby current as low as 2.5uA. It can withstand input voltage up to 48V and deliver 300mA output current.
Features
Wide Input Voltage Range: from 3V to 45V
Ultra-Low Quiescent Current: 2.5uA
300mA Output Current
Stable with a Wide Range of Ceramic Capacitor, Larger than 1μF
High PSRR, 70dB at 1KHz
Integrated Thermal and Current Limit
RoHS Compliant

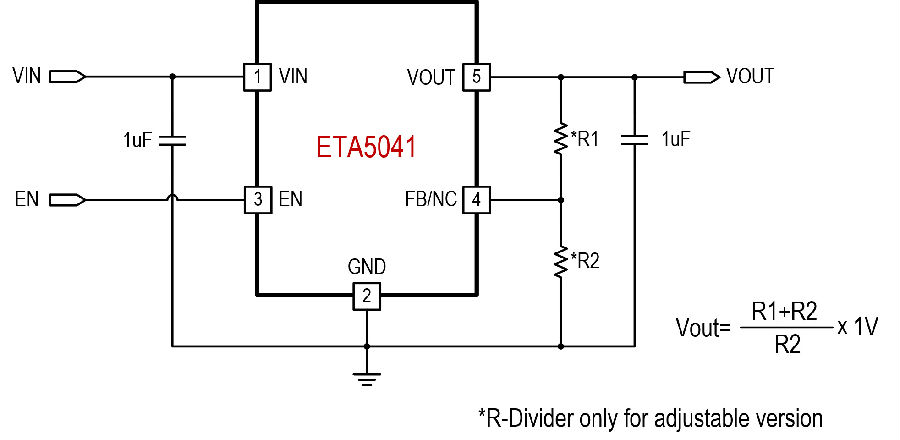

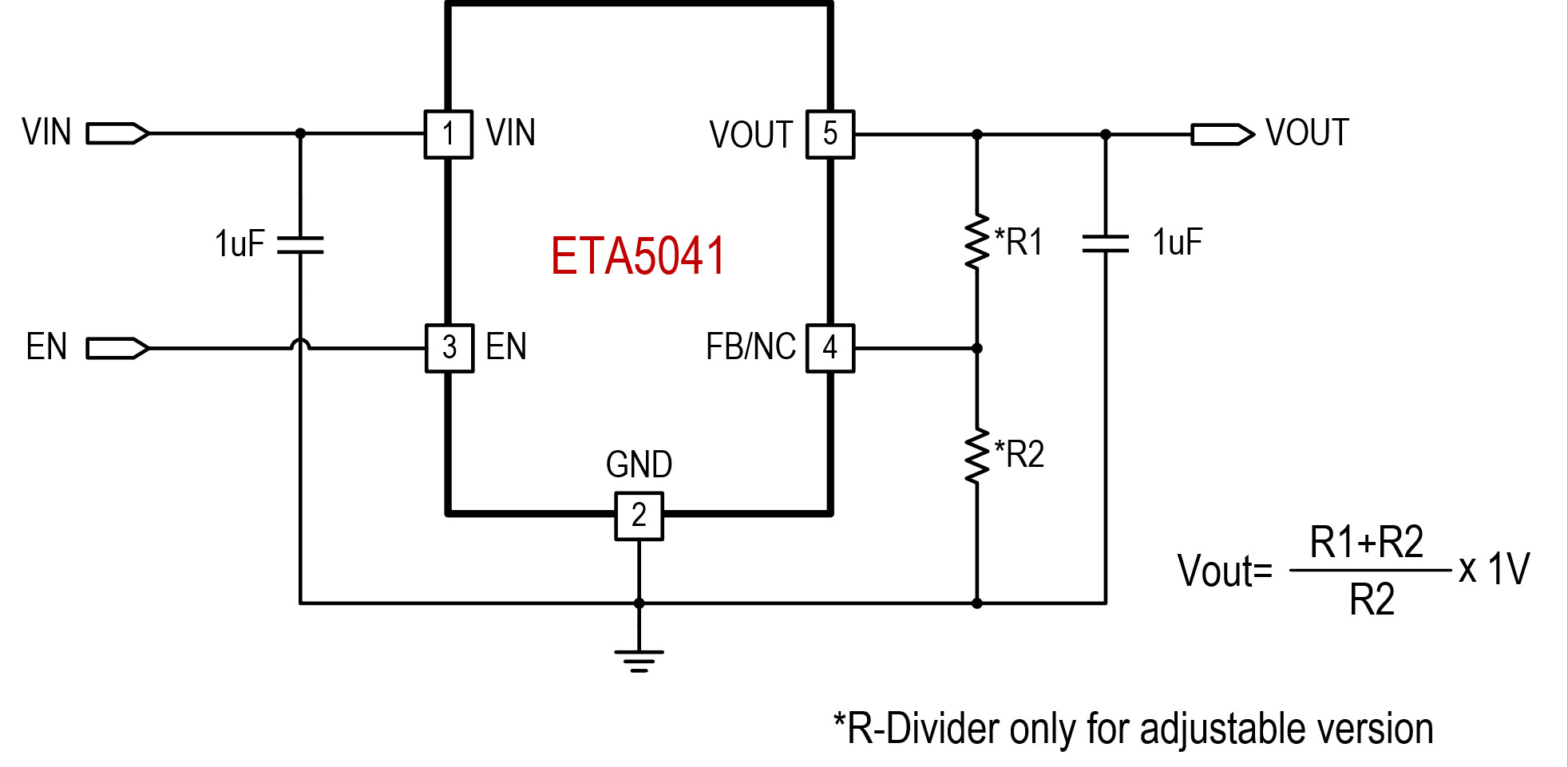

應用電路圖：
