| 型號： | ETA5095V33S8D |
| 廠 商： | 中國 |
| 品牌/商標: | ETA（鈺泰） |
| 產品類別： | 鈺泰/ETA- |
| 聯系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
ETA5095V33S8D 電子元器件 ETA鈺泰 封裝SOT89-3 40V輸入，150mA線性調節(jié)器
40V Input, 150mA Linear Regulator
ETA5095 is a linear regulator features wide input range, high power-supply rejection ratio(PSRR) and low noise. The device provides fixed output voltages of 3.3V and 5V. The output voltage is also adjustable. It can be programmed by a resistor divider from 1.5V to 24V.
Features
Wide Input Voltage Range: From 6V to 40V
Programmable Output Voltage: From 1.5V to 24V
Up to 150mA Output Current
Very Accurate Output Voltage: 3% Over Temperature and Input Voltage
Accurate EN threshold for setting external UVLO
High PSRR, 60dB
Integrated Thermal and Current Limit

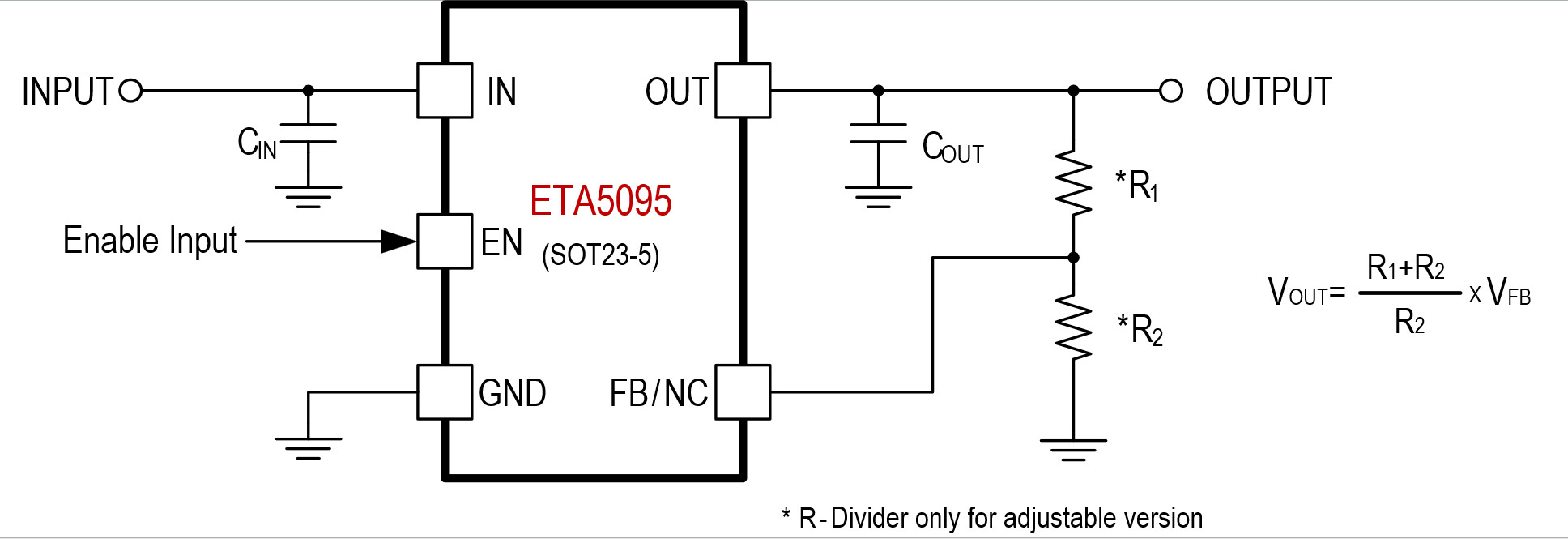

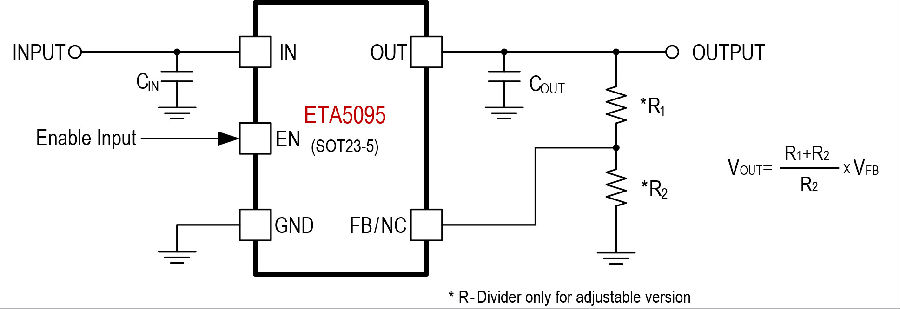

應用電路圖：
