| 型號： | ETA5120V330DS2F |
| 廠 商： | 中國 |
| 品牌/商標: | ETA（鈺泰） |
| 產品類別： | 鈺泰/ETA- |
| 聯系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
ETA5120V330DS2F 電子元器件 ETA（鈺泰） 封裝SOT23-5 電源管理芯片
20V Input, 2uA Ultra-Low IQ, High PSRR, 200mA LDO
ETA5120 is a fixed output, low-dropout (LDO), low-power linear voltage regulator that features ultra-low standby current as low as 2uA. It can withstand input voltage up to 20V and deliver 200mA output current, at least.
Features
20V Input Voltage
2uA Ultra-low IQ
200mA Output Current
Stable with a Wide Range of Ceramic Capacitor
300mV Dropout Voltage for 100mA at VOUT = 2.8V
RoHS Compliant

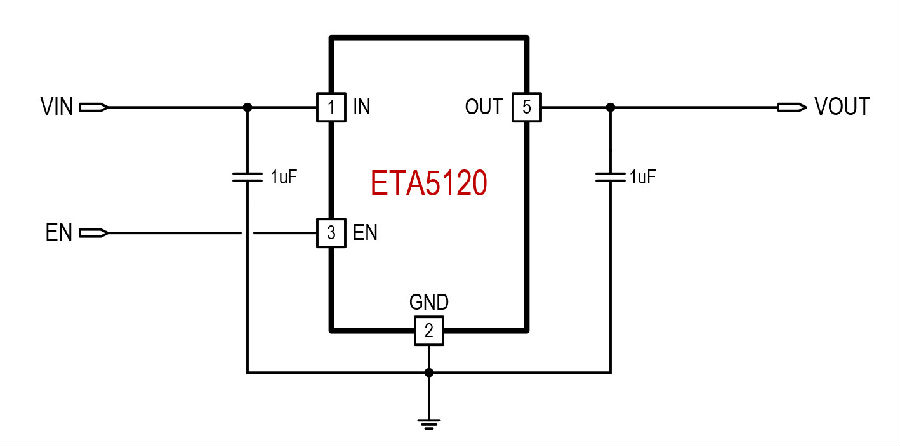

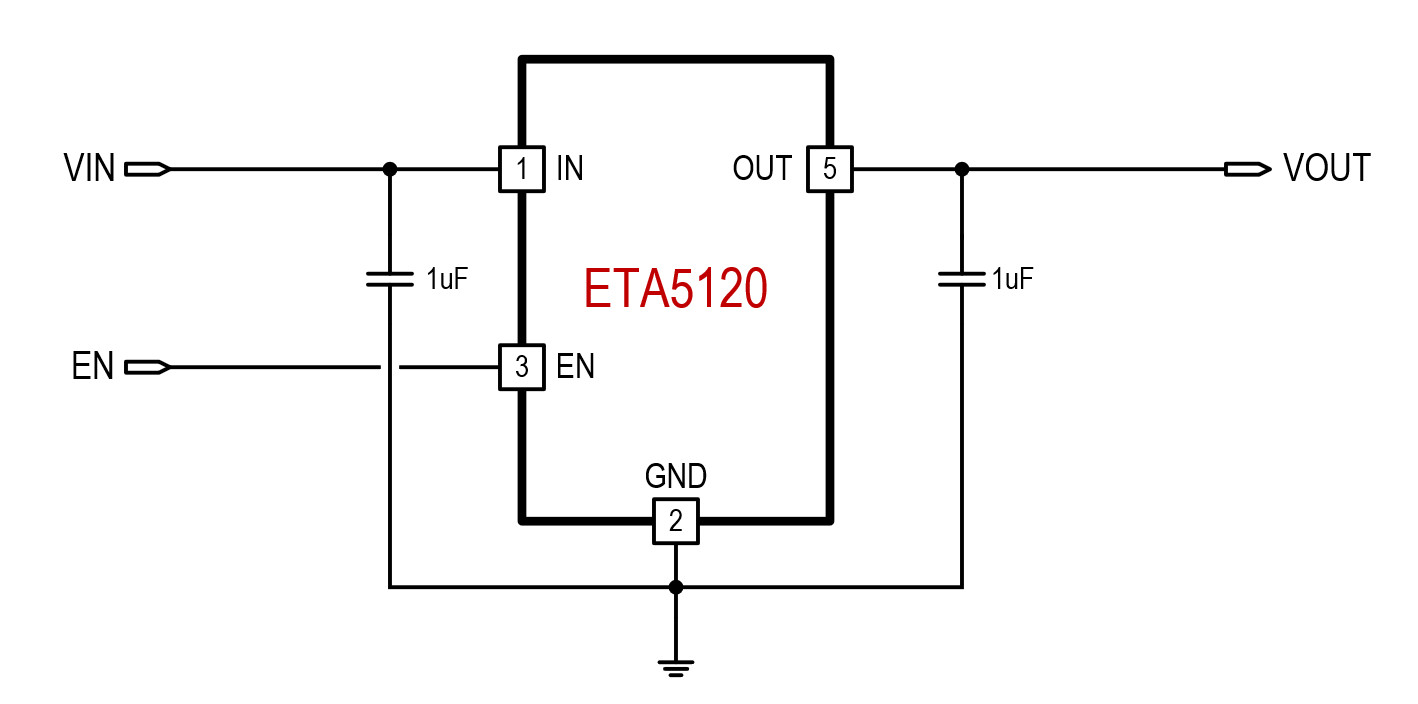

應用電路圖：
