| 型號： | ETA96973E8A |
| 廠 商： | 中國 |
| 品牌/商標: | ETA |
| 產品類別： | 鈺泰/ETA- |
| 聯系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
超低功耗PMU, 16V線性充電器和5V升壓
Ultra Low Power PMU with 16V Linear Charger and 5V Boost
ETA96973 is an ultra low power PMU with 2 channels: a 16V single cell Li+ battery linear charger and a 5V Boost synchronous converter with true-shutoff function. The linear charger fully integrated constant current (CC) / constant voltage (CV) control module and charge FET, with minimal external devices. It also has pre-charge function for trickle chargin...
Features
Ultra low IQ when standby, Ibat<5uA
16V input standoff voltage
4.35V charge termination voltage
Charge current programmable, up to 1.2A
Output Disconnect and SCP at 5V output
5V/0.4A Output Power
Up to 94% Efficiency for Boost converter
Functioning with NO BATTERY
Logic Control Shutdown and Thermal shutdown
ESOP8 Package

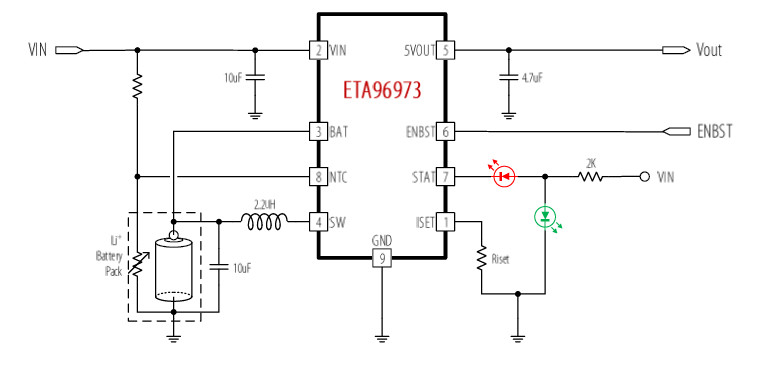

應用電路圖：
