| 型號： | ETA4084S2G |
| 廠 商： | 中國 |
| 品牌/商標: | ETA（鈺泰） |
| 產(chǎn)品類別： | 鈺泰/ETA- |
| 聯(lián)系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
16V/0.75A全集成2芯鋰離子電池線性充電器
16V/0.75A Fully Integrated Linear Charger for 2 Cell Li-ion Battery
ETA4084 is a fully integrated constant current (CC)/constant voltage (CV) charger for 2 cell Li-ion battery. Its compact package with minimum external components requirement makes the ETA4084 ideal for portable applications. No external sense resistor or blocking diode is necessary for the ETA4084. Build-in thermal feedback mechanism regulates the charge ...
Features
16V standoff input voltage at VIN and BAT pins
8.4V charge termination voltage
Charge current up to 750mA in SOT23-6 package
No damage when battery reversely connected
25uA supply current when standby
Soft-start limits in-rush current
SOT23-6 package

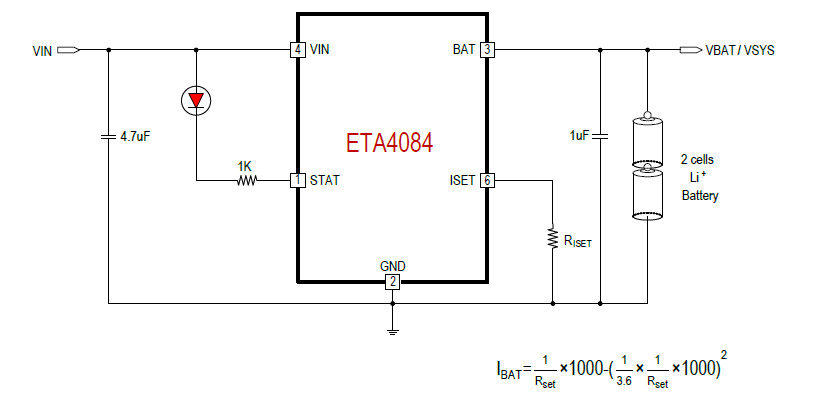

應用電路圖：
