ETA（鈺泰） ETA3413S2F SOT23-5 2A, 3MHz高效率降壓轉換器
2A, 3MHz High Efficiency Step-Down Converter in SOT23-5 Package
The ETA3413 is a high-efficiency, DC-to-DC step-down switching regulator, work in force PWM mode, capable of delivering up to 2A of output current. The devices operate from an input voltage range of 2.6V to 5.5V and provide output voltages from 0.6V to VIN, making the ETA3413 ideal for low voltage power conversions.
Features
Up to 96% Efficiency
Force PWM mode
Up to 2A Max Output Current
3MHz Switching Frequency
Internal Compensation
Clock Dithering
Tiny SOT23-5 Package

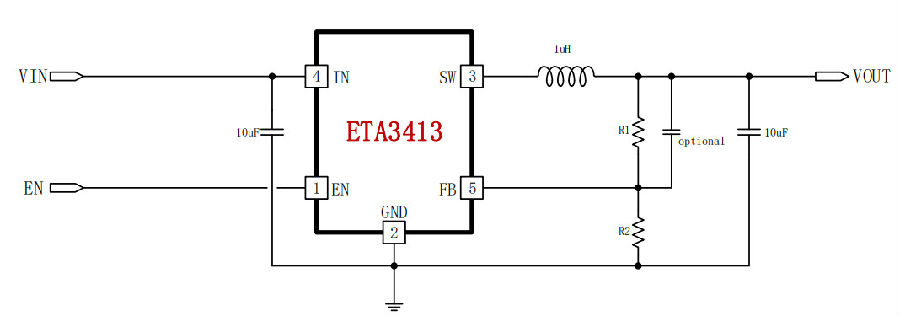

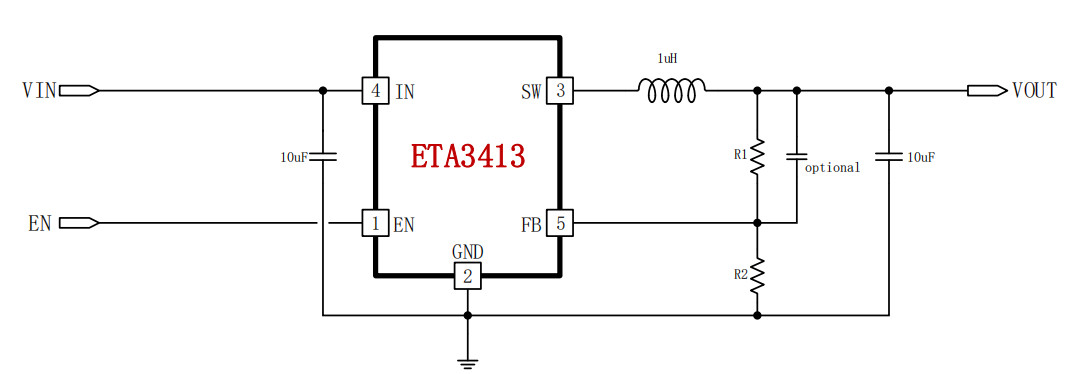

應用電路圖：
