| 型號： | ETA3415S6G |
| 廠 商： | 中國 |
| 品牌/商標: | ETA（鈺泰） |
| 產品類別： | 鈺泰/ETA- |
| 聯系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
ETA（鈺泰） ETA3415S6G SOT-563 1A, 3MHz降壓轉換器
1A, 3MHz Step-Down Converter in SOT563 Package
The ETA3415 is a high-efficiency, DC to DC step-down switching regulator, capable of delivering up to 1A of output current. The devices operate from an input voltage range of 2.6V to 7V and provide output voltages from 0.6V to VIN, making the ETA3415 ideal for low voltage power conversions.
Features
Up to 96% Efficiency
Up to 1A Max Output Current
3MHz Switching Frequency
Light Load operation
Internal Compensation
SOT563 Package
DFN1.6×1.6-6 Package
RoHS Compliant

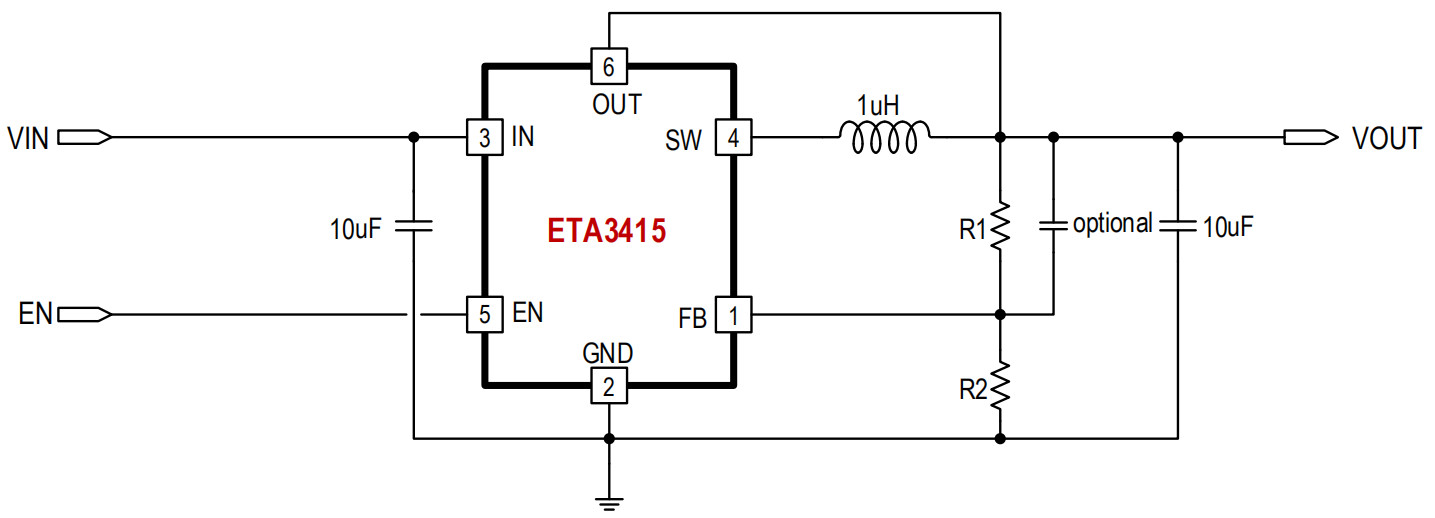

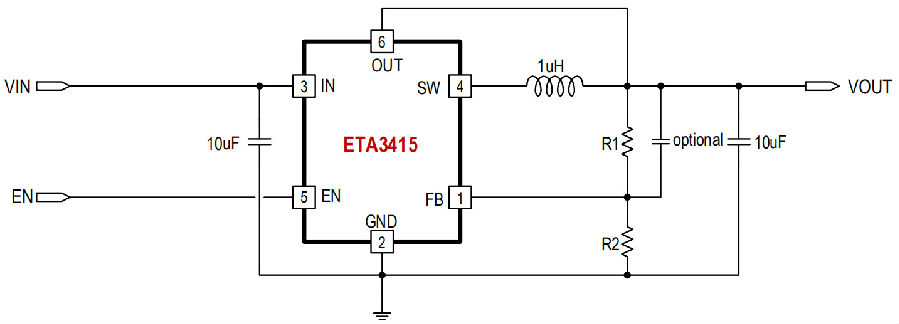

應用電路圖：
