ETA3418S2F SOT23-5 2.5A，強制PWM模式，3MHz降壓轉換器
2.5A, Forced PWM Mode, 3MHz Step-Down Converter in SOT23-5 Package
The ETA3418 is a high-efficiency, DC-to-DC step-down switching regulator, work in force PWM mode, capable of delivering up to 2.5A of output current. The devices operate from an input voltage range of 2.6V to 7V and provide output voltages from 0.6V to VIN, making the ETA3418 ideal for low voltage power conversions.
Features
Up to 96% Efficiency
Up to 2.5A Max Output Current
3MHz Switching Frequency
Internal Compensation
Tiny SOT23-5 Package
Short-Circuit Protection
Over-Temperature Protection
Forced PWM Mode

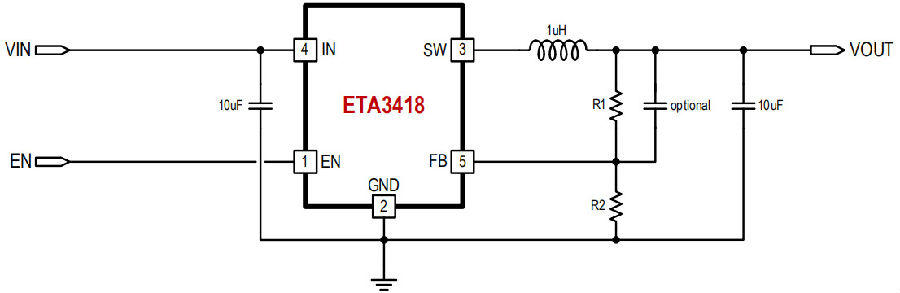

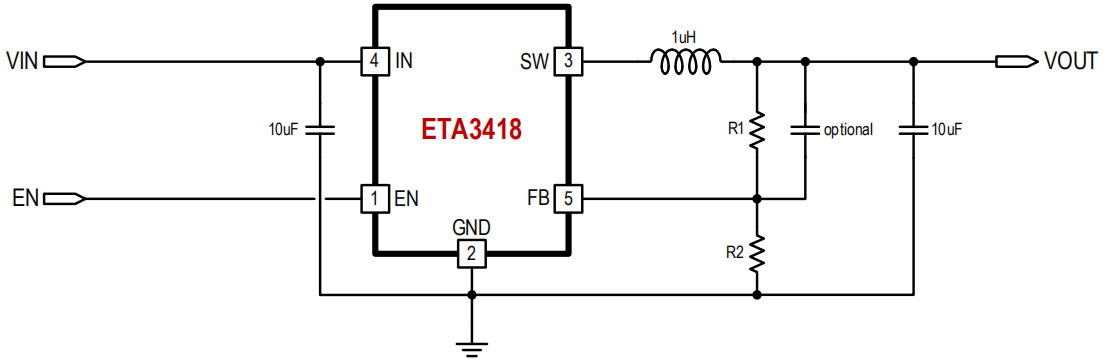

應用電路圖：
