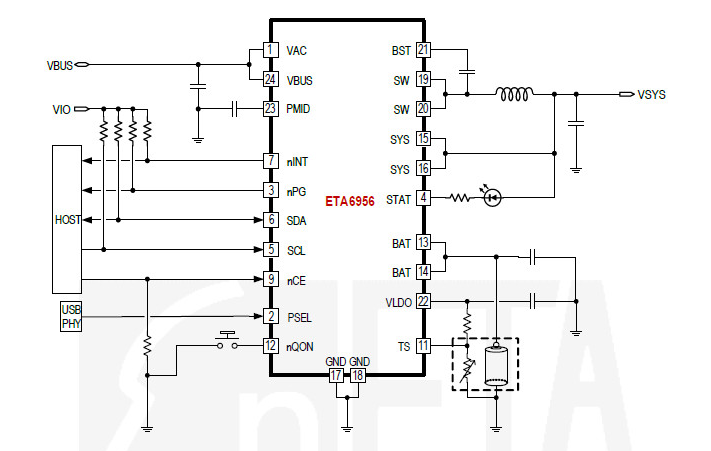

鈺泰 ETA6956 QFN-24 電池充電管理芯片

FEATURES

High-Efficiency, 1.5MHz, Synchronous Switching Buck Charger
90% Charge Efficiency at 2A from 5V Input
Programmable PFM Mode for Light Load Conditions
Supports USB On-The-Go (OTG)
Programmable Current Limit Boost Converter with Up to 1.2A Output
91% Boost Efficiency at 1A Output
Output Short Circuit Protection
Programmable PFM Mode for Light Load Conditions
Wide Range Single Input to Support both USB Input and High Voltage Adapters
Support 3.9V to 13.5V Input Voltage Range With 30V Absolute Maximum Input Voltage Rating
Programmable Input Current Limit (100mA to 3.2A With 100mA Resolution) to Support USB 2.0, USB 3.0 Standards and High Voltage Adaptors (IINDPM)
