ETA（鈺泰） ETA3423DCG DFN1.6x1.6-6封裝的1A、3MHz降壓轉換器
1A, 3MHz Step-Down Converter in SOT563 Package
The ETA3423 is a high-efficiency, DC-to-DC step-down switching regulator, capable of delivering up to 1A of output current. The devices operate from an input voltage range of 2.6V to 6.5V and provide output voltages from 0.6V to VIN, making the ETA3423 ideal for low voltage power conversions.
Features
Up to 96% Efficiency
Up to 1A Max Output Current
3MHz Switching Frequency
Forced PWM Mode
Internal Compensation
Tiny SOT563 Package
DFN1.6×1.6-6 Package

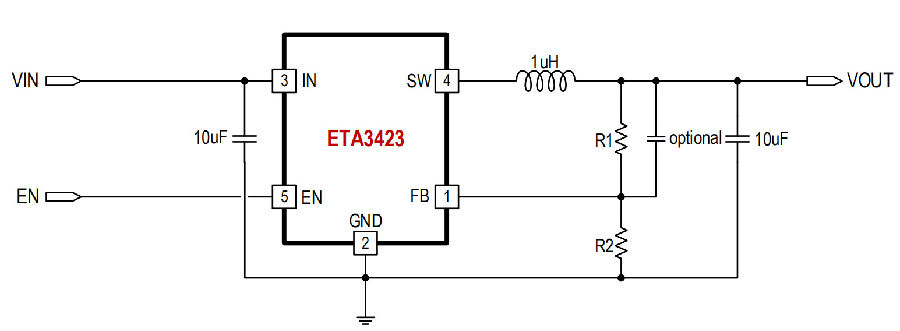

應用電路圖：
