| 型號： | ETA3426D2G |
| 廠 商： | 中國 |
| 品牌/商標: | ETA |
| 產品類別： | 鈺泰/ETA- |
| 聯系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
ETA3426D2G 1uA超低靜態電流，1.2A輸出同步降壓
1uA Ultra-Low Quiescent Current, 1.2A Output Synchronous BUCK
The ETA3426 is a high-efficiency, DC-to-DC step-down switching regulator, capable of delivering up to 1.2A of output current. It has an ultra-low quiescent current 1uA when there is no load. Running at a fixed frequency of 1.4MHz allows the use of small inductance value and low DCR inductors, thereby achieving higher efficiencies.
Features
1 to 2uA No Switching Standby Current
Up to 96% Efficiency
Up to 1.2A Max Output Current
4MHz Frequency
Light Load Operation
Internal Compensation
Tiny Package

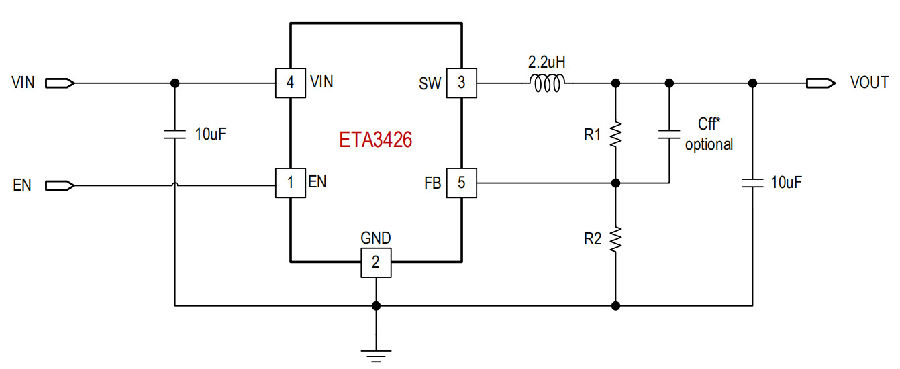

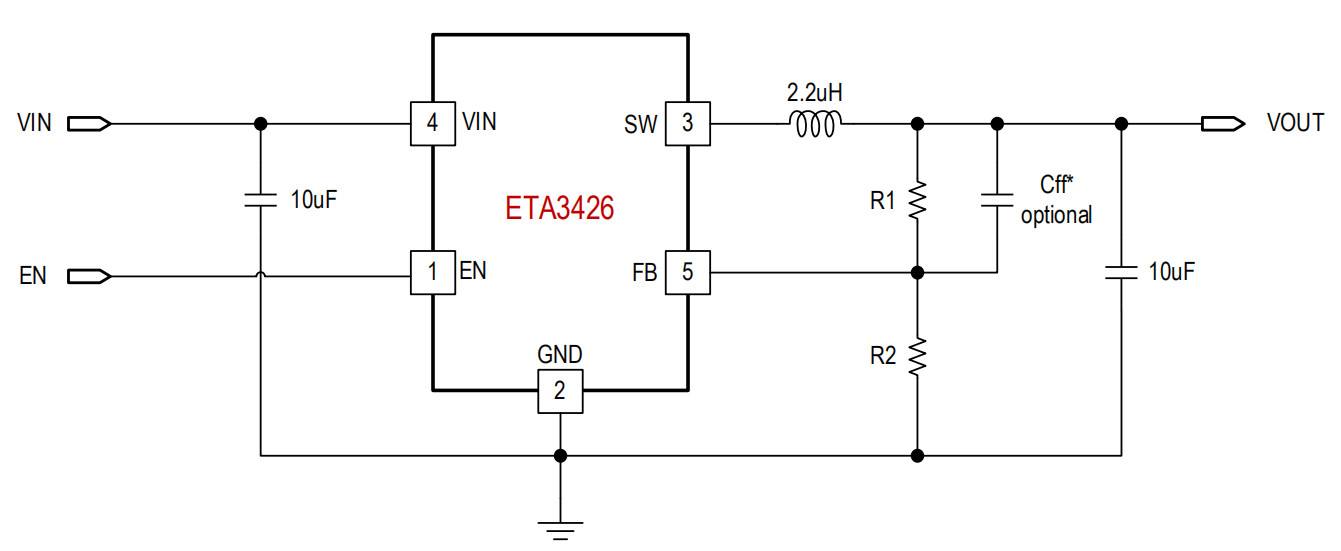

應用電路圖：
