| 型號： | ETA3446S2F |
| 廠 商： | 中國 |
| 品牌/商標: | ETA |
| 產品類別： | 鈺泰/ETA- |
| 聯系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
ETA（鈺泰） ETA3446S2F SOT23-5 2MHz、3A、COT同步降壓變換器
2MHz, 3A, COT Synchronous BUCK converter in SOT23-5
The ETA3446 is a high-efficiency, DC-to-DC step-down switching regulator, capable of delivering up to 3A of output current. The devices operate from an input voltage range of 2.5V to 5.5V and provide output voltages from 0.6V to VIN, making the ETA3446 ideal for low voltage power conversions.
Features
Up to 93% Efficiency
Up to 3A Max Output Current
Adaptive COT Control
Ultra-fast load transient response
2MHz Frequency
100% Duty Cycle Operation
High Efficiency PFM mode at light load
50uA Quiescent Current
1% Feedback Accuracy
Adjustable Output from 0.6V
Cycle-by-cycle Over Current Protection
Short Circuit Protection with Hiccup Mode
Stable with Low-ESR Output Ceramic Capacitors
Available in SOT23-5L Package

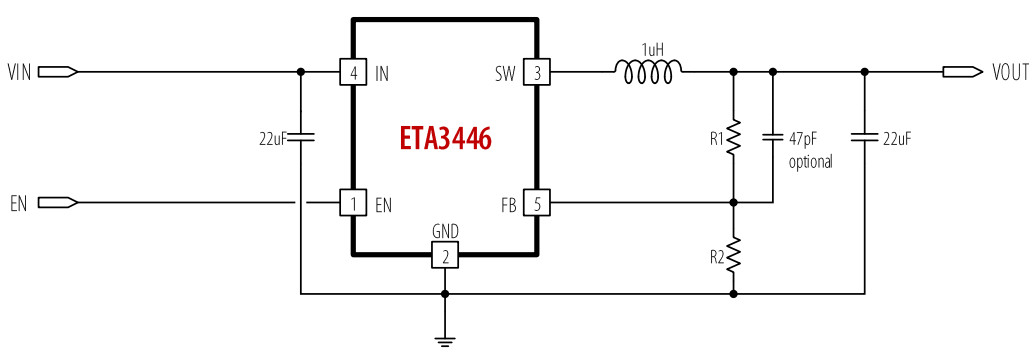

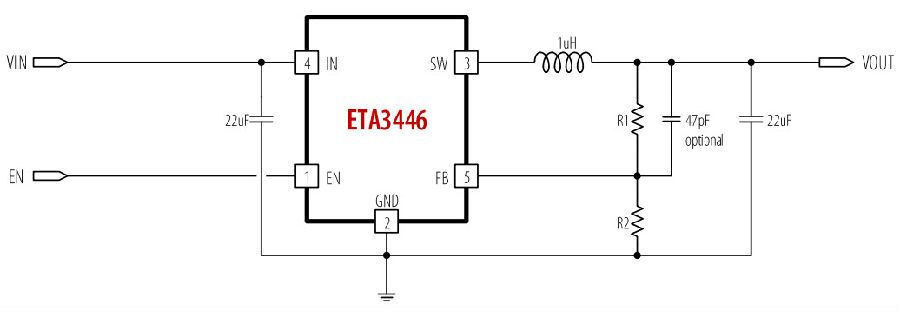

應用電路圖：
