| 型號： | ETA8111S2G |
| 廠 商： | 中國 |
| 品牌/商標: | ETA |
| 產品類別： | 鈺泰/ETA- |
| 聯系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
ETA（鈺泰） ETA8111S2G SOT23-6 18V, 2A, COT同步降壓轉換器
18V, 2A, COT Synchronous Step-Down Converter in SOT23-6
ETA8111 is a wide input range, high-efficiency and high- frequency DC-to-DC step-down switching regulator, capable of delivering up to 2A output current. It adopts an adaptive COT control scheme that enables very fast transient response and provides a very smooth transition when the output varies from light load to heavy load.
Features
Wide Input Voltage Range: 5V-18V
Adaptive COT Control
Forced PWM Mode
Capable of Delivering 2A Output
Ultra-fast Load Transient Response
High Efficiency Synchronous Operation
Low Rdson Internal Power FETs
No External Compensation Needed
Thermal Shutdown and UVLO
Available in SOT23-6 Package
RoHS Compliant

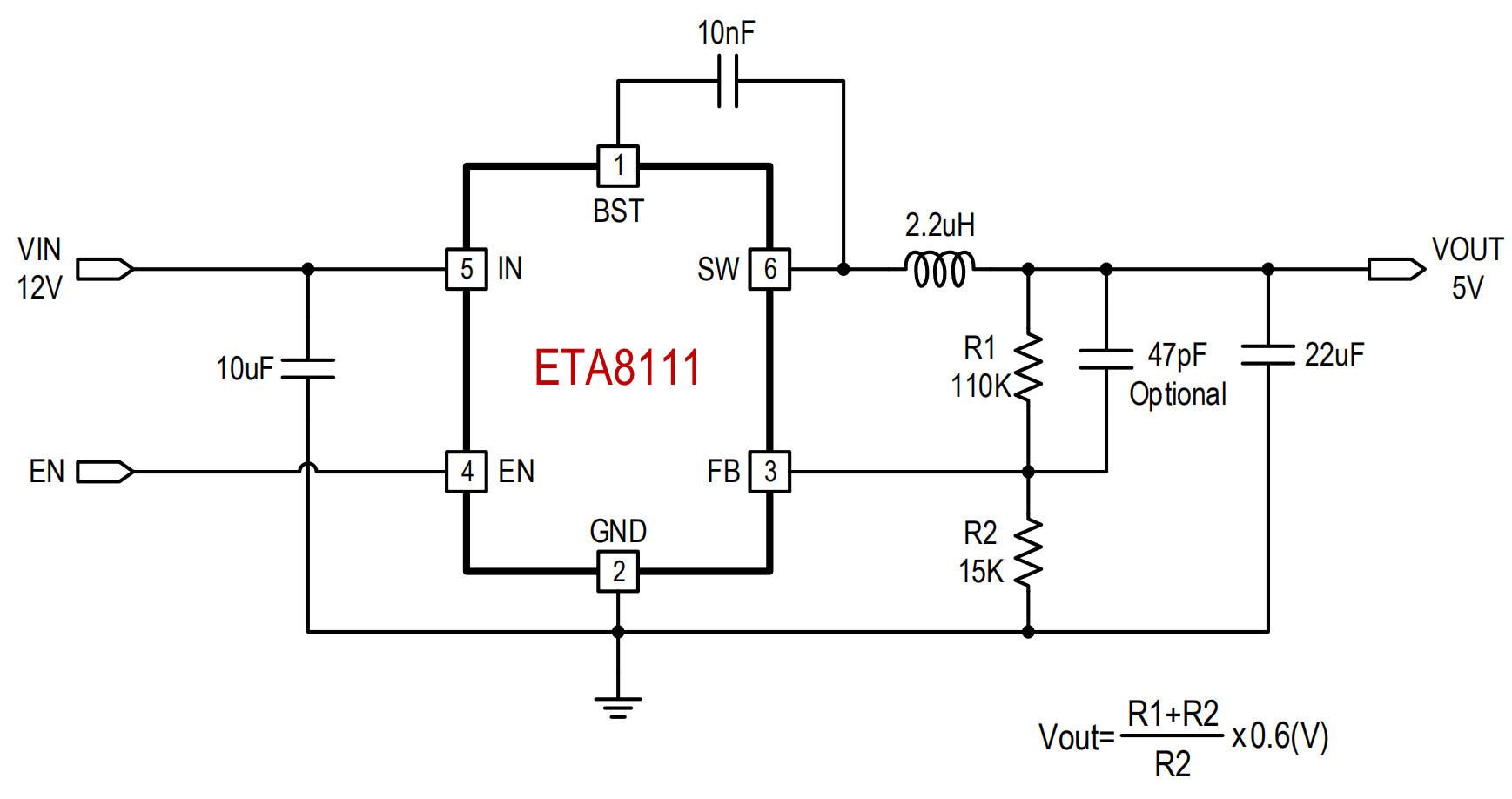

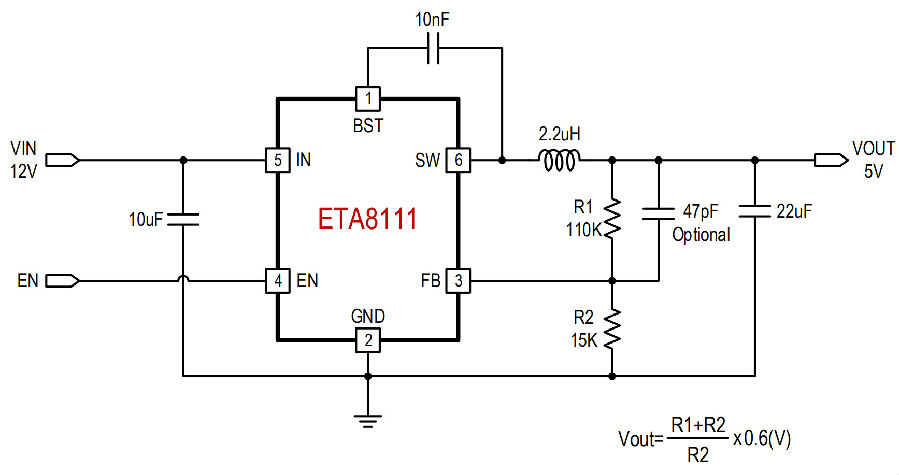

典型的應用程序：
