| 型號： | ETA1032CSJ |
| 廠 商： | 中國 |
| 品牌/商標: | ETA（鈺泰） |
| 產(chǎn)品類別： | 鈺泰/ETA- |
| 聯(lián)系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
ETA（鈺泰）ETA1032CSJ CSP1.2x1.2-9 2.5MHz, 1.5A輸入電流
2.5MHz, 1.5A Input Current, DC-DC Boost Converter in CSP 1.2x1.2
ETA1032 is highly efficient 2.5 MHz, 1.5A input current, step-up DC-to-DC converters. ETA1032 convert input voltages from 2.5 V to 5.25 V to a fixed output voltage of 5V.
Features
Up to 95% DC-DC Efficiency
Up to 1. 5A Max input current
Output Disconnect
Short-circuit Protection
Output to Input Reversed Current Protection
45μA No load IQ and light load PFM Mode; BYPASS MODE
Current Mode control
Logic Control Shutdown and Thermal shutdown
Fixed 5V Output Voltage
CSP1.2×1.2-9 package

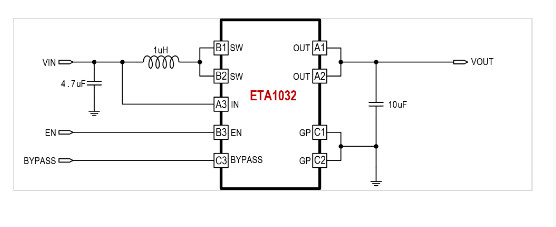

典型的應用程序：
