| 型號： | SC8329 |
| 廠 商： | 上海 |
| 品牌/商標: | 南芯 |
| 產品類別： | 南芯/SOUTHCHIP- |
| 聯系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
20A開關電流，19V輸出--SC8329--帶隔離NMOS驅動器的同步升壓
SC8329產品特點：
Wide input operating voltage from 2.7 V to 13 V
Wide output range, from 4.5 V to 19V
Up to 20-A programmable switching current limit
Integrated 6 mΩ and 11 mΩ Power MOSFETs
PFM and PWM mode selection
1.0 μA shutdown current
Adjustable switching frequency: 200 kHz to 2.2 MHz
Full protection of UVLO, OVP, OCP, OTP
Short circuit protection with Isolation NMOS driver

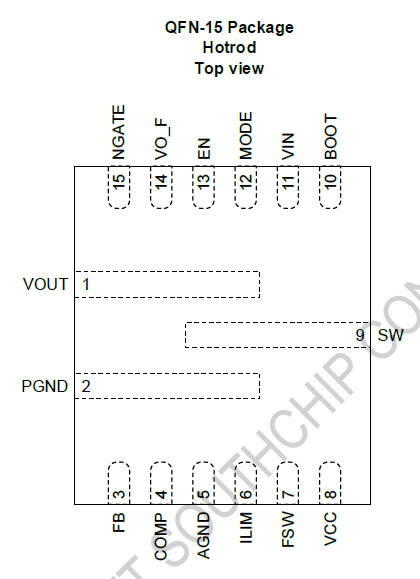

Available in QFN-15 package (4.0mm×3.0mm)
型號：SC8329
封裝：QFN-15
產品尺寸：4mm x 3mm x 0.75mm
包裝：3000pcs/盤
