5V/1.5A同步升壓轉換器ETA1038，深圳熱銷ETA1038S2G

         The ETA1038 is a high efficiency synchronous step-up converter that can provide up to 1.5A to a boosted output up to 5V from a low voltage source. Unlike most

step-up converter, it incorporates circuits that disconnect the input from output, during shutdown, short-circuit, output current overloading, or other events when output is higher than the input. This eliminates the need for an external MOSFET and its control circuitry to disconnect the input from output, and provides robust output overload protection. A switching frequency of 1MHz minimizes solution footprint by allowing the use of tiny and low profile inductors and ceramic capacitors. An internal synchronous MOSFET provides highest efficiency and with a current mode control that is internally compensated, external parts count is reduced to minimal.

產品型號：ETA1038S2G

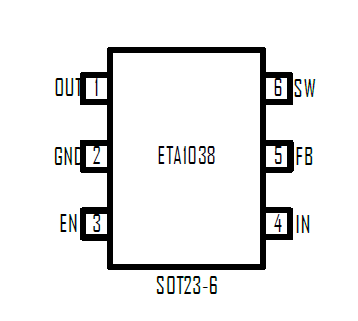

封裝：SOT23-6

包裝：3000pcs/盤

應用產品：用于MID、智能手機的USB OTG、移動備用電池充電器、堿性、鎳鎘和鎳氫電池應用、USB供電設備等

產品特性：

•  Output Disconnect

•  Short-circuit Protection

•  5V/1.5A Output Power

•  Output to Input Reversed Current Protection

•  Up to 96% Efficiency

•  40μA No load IQ and light load PFM Mode

•  Internal Synchronous Rectifier

•  Current Mode control

•  Logic Control Shutdown and Thermal shutdown

•  SOT23-6 Package
