產品詳情

上海鈺泰新品熱銷可調型升壓芯片ETA1061S2G，可替換ETA1061V33S2G

ETA1061S2G            SOT23-6                   3000

ETA1061V33S2G                 SOT23-6                 3000

ETA1061V50S2G                 SOT23-6                 3000

ETA1061D2G                 DFN2x2-6                  3000

ETA1061V33D2G                 DFN2x2-6                 3000

ETA1061V50D2G                 DFN2x2-6                 3000

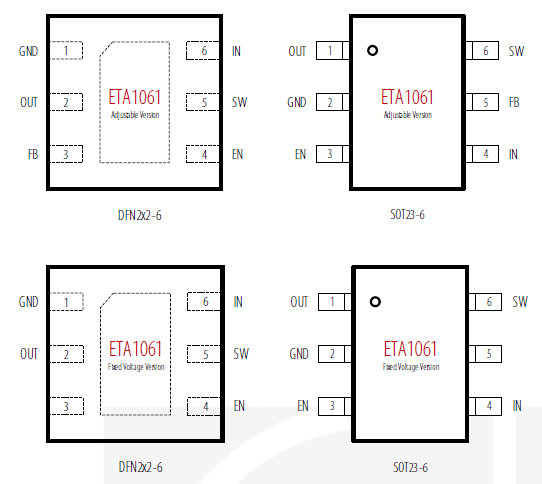

產品腳位圖：

產品特點：

•  Ultra low IQ when No Switching :1uA for adjustable version and 1.2uA for fixed voltage version

•  0.8V Startup

•  5V/0.4A Output Capability at Vin=3V

•  Output to Input Reversed Current Protection

•  Up to 94% Efficiency

•  Internal Synchronous Rectifier and Output Disconnect

•  Short-circuit Protection

•  Adjustable version and Fixed voltage version

•  SOT23-6 & DFN2x2-6 Package

產品應用：

•  Tablet, MID

•  Smart Phone

•  Power Bank

•
