| 型號： | ETA1096E8A |
| 廠 商： | |
| 品牌/商標: | ETA/鈺泰 |
| 產(chǎn)品類別： | 鈺泰/ETA- |
| 聯(lián)系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
鈺泰 ETA1096E8A 1MHz高效同步升壓變換器

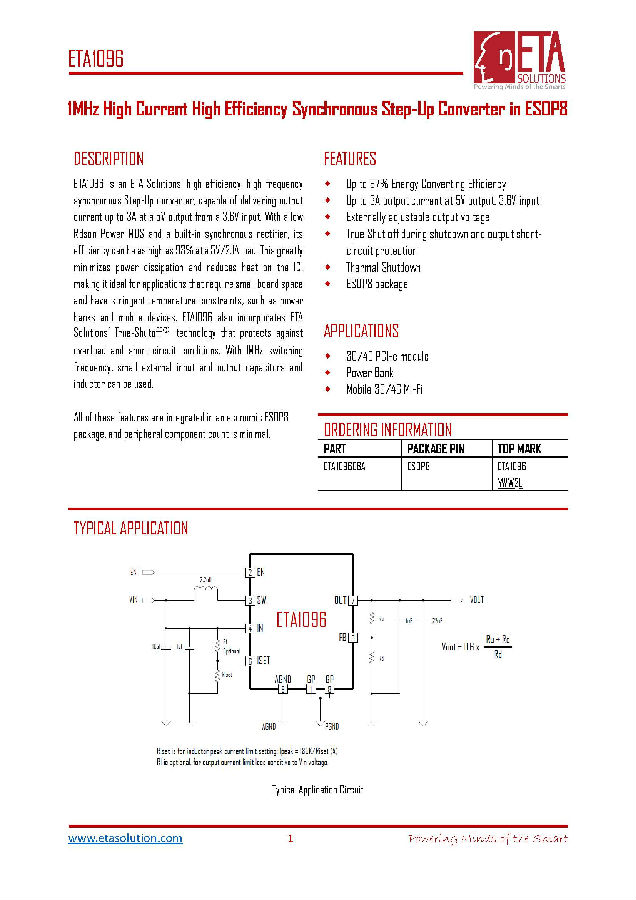

DESCRIPTION
ETA1096 is an ETA Solutions' high eficiency. high frequency synchron Step-Up conver rter, capable of delivering output current up to 3A at a 5V output from a 3.6V input. With a low Rdson Power MOS and a built-in synchronous rectifier, its efficiency can be as high as 93% at a 5V/2.IA load. This greatly minimizes power dissipation and reduces heat on the IC, making it ideal for applications that require small board space and have stringent temperature constraints, such as power banks and mobile devices. ETA1096 also incorporates ETA Solutions' True-Shutof⑧ technology that protects against overload and short-circuit conditions. With 1MHz switching frequency, small external input and output capacitors and inductor can be used.
All of these features are integrated in an economic ESOP8 package. and peripheral component count is minimal.
FEATURES
● Up to 97% Energy Converting Efficiency
● Up to 3A output current at 5V output, 3.6V input
● Externally adjustable output voltage
● True Shut off during shutdown and output short-circuit protection
● Thermal Shutdown
● ESOP8 package
APPLICATIONS
● 3G/4G PCI-e module
● Power Bank
● Mobile 3G/4G Mi-Fi
