| 型號： | ETA2892E8A |
| 廠 商： | 中國 |
| 品牌/商標: | ETA |
| 產品類別： | 鈺泰/ETA- |
| 聯系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
ETA2892E8A ESOP-8 40V/3A，強制PWM模式，同步降壓轉換器
40V/3A, Forced PWM Mode, Synchronous Step-Down Converter
The ETA2892 is a high-efficiency and high-frequency DC-to-DC step-down switching regulator, capable of delivering up to 3A of output current. The device operates with input voltage from 3.6V to 40V, making the ETA2892 ideal for wide input voltage range power conversion.
Features
Wide Input Voltage Range 3.6V-40V
Capable of Delivering 3A Output
Current Mode Control
Programmable Switching Frequency
Forced PWM Mode
Low Rdson Internal Power FETs
Thermal Shutdown and UVLO Protection
Available in ESOP8 Package

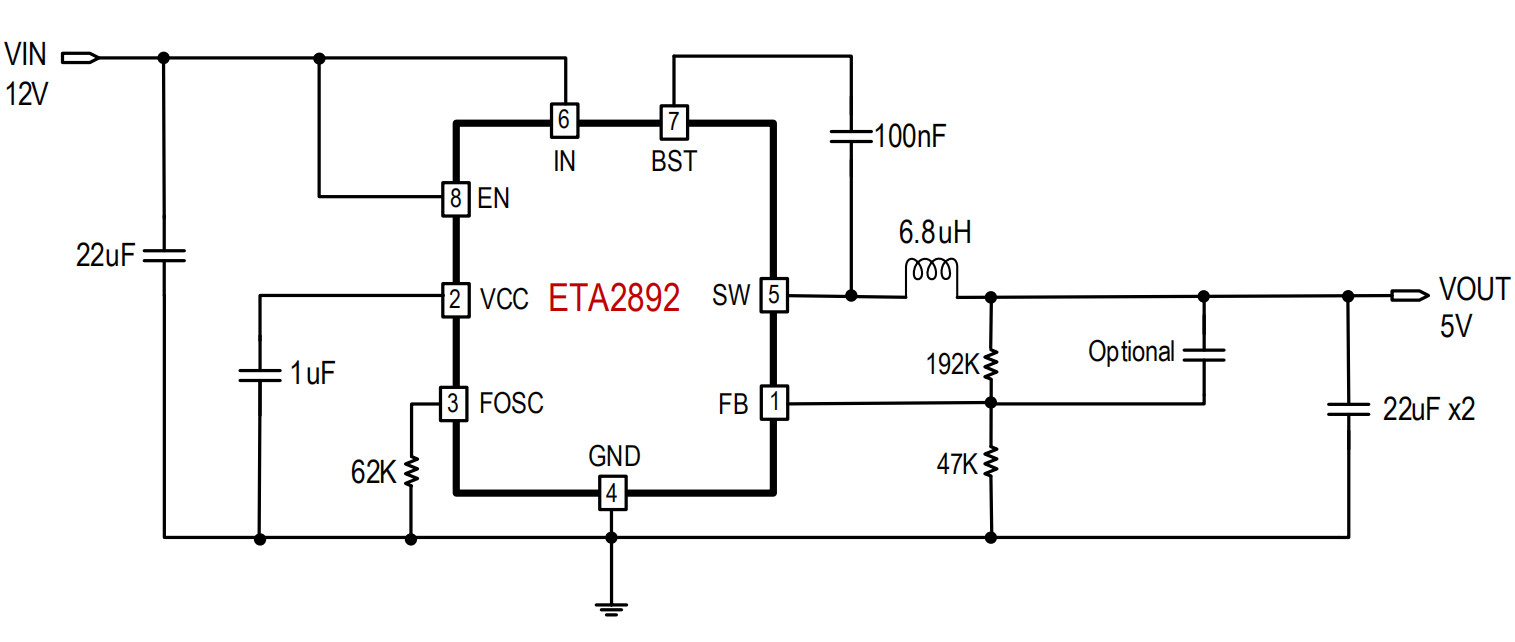

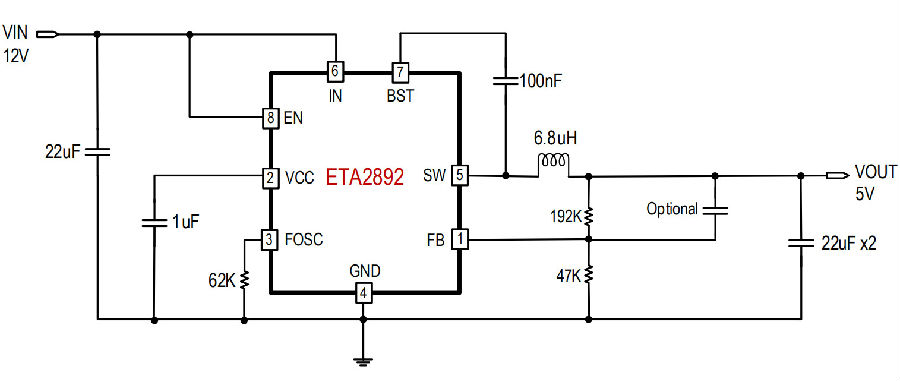

應用電路圖：
