| 型號： | ETA3411FDCG |
| 廠 商： | 中國 |
| 品牌/商標: | ETA |
| 產(chǎn)品類別： | 鈺泰/ETA- |
| 聯(lián)系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
ETA3411FDCG DFN1.6x1.6-6 2A同步降壓轉(zhuǎn)換器用于射頻功率放大器
3MHz, Output Adjustable, 2A Synchronous Buck Converter for RF Power Amplifiers
The ETA3411 is a high-efficiency, DC-to-DC step-down switching regulator optimized for powering RF power amplifiers, It has a high switching frequency of 3MHz and is capable of delivering up to 2A of output current. The device operates from an input voltage range of 2.1V to 5.5V and provides and adjustable output voltages from 0.6V to VIN by tracking an e...
Features
External Reference signal
Standby Current 33uA (Vout=1.2V, Iout=0A)
Up to 96% Efficiency
Up to 2A Max Output Current
3MHz Frequency
Light Load operation
Internal Compensation
Tiny DFN1.6×1.6-6L and DFN2x2-8L Package

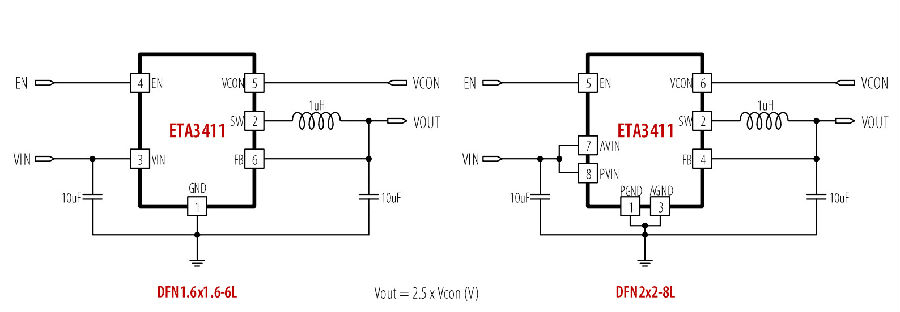

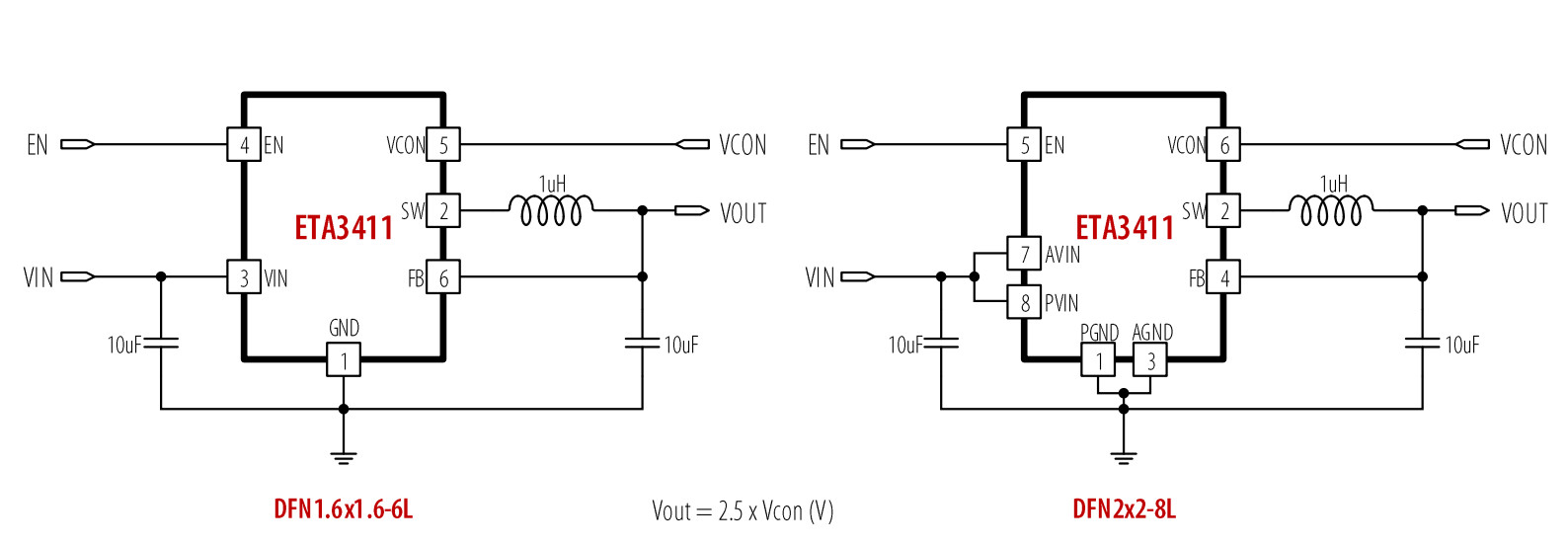

應(yīng)用電路圖：
