ETA（鈺泰） ETA3414S2F SOT23-5 1.5A, 3MHz降壓轉(zhuǎn)換器
1.5A, 3MHz Step-Down Converter in SOT23-5 Package
The ETA3414 is a high-efficiency, DC-to-DC step-down switching regulator, work in force PWM mode, capable of delivering up to 1.5A of output current. The devices operate from an input voltage range of 2.6V to 7V and provide output voltages from 0.6V to VIN, making the ETA3414 ideal for low voltage power conversions.
Features
Up to 96% Efficiency
Up to 1.5A Max Output Current
3MHz Switching Frequency
Force PWM mode
Internal Compensation
Tiny SOT23-5 Package

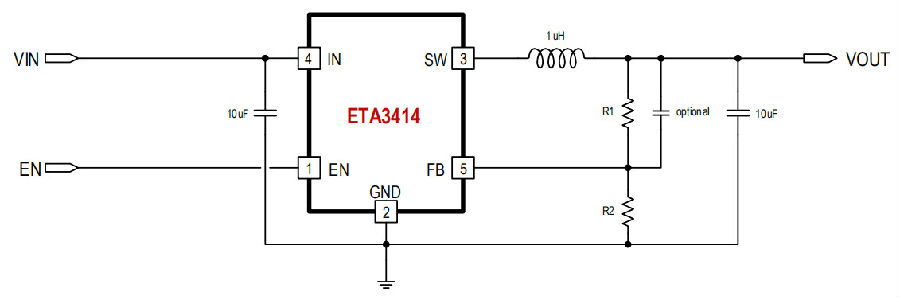

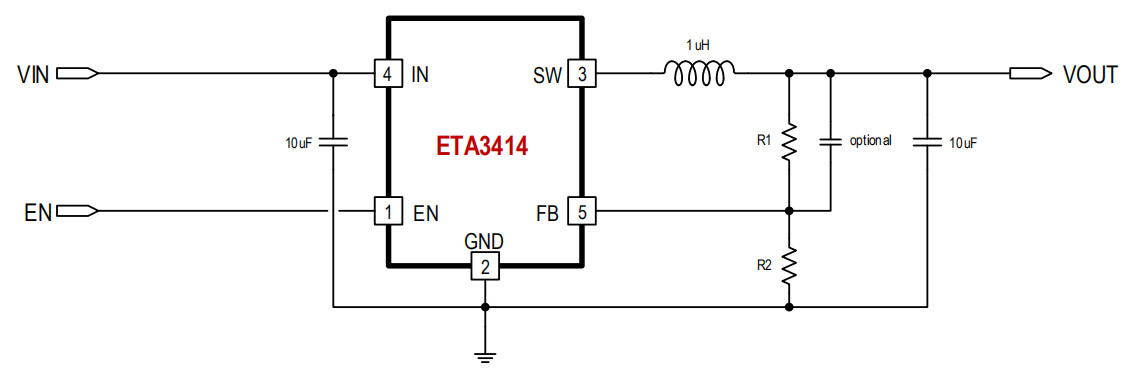

應(yīng)用電路圖：
