| 型號： | ETA3424V12S2F |
| 廠 商： | 中國 |
| 品牌/商標: | ETA（鈺泰） |
| 產品類別： | 鈺泰/ETA- |
| 聯系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
ETA（鈺泰） ETA3424V12S2F SOT23-5 1.5A、3MHz降壓轉換器
1.5A, 3MHz Step-Down Converter in SOT23-5 Package
The ETA3424 is a high-efficiency, DC-to-DC step-down switching regulator, work in forced PWM mode, capable of delivering up to 1.5A of output current. The devices operate with an input voltage range from 2.6V to 7V and provide fixed output voltages of 1.2V, 2.5V and 3.3V, making the ETA3424 ideal for low voltage power conversions.
Features
Up to 96% Efficiency
Fixed Output Voltage:1.2V/2.5V/3.3V
Up to 1.5A Max Output Current
3MHz Switching Frequency
Forced PWM Mode
Internal Compensation
Tiny SOT23-5 Package
RoHS Compliant

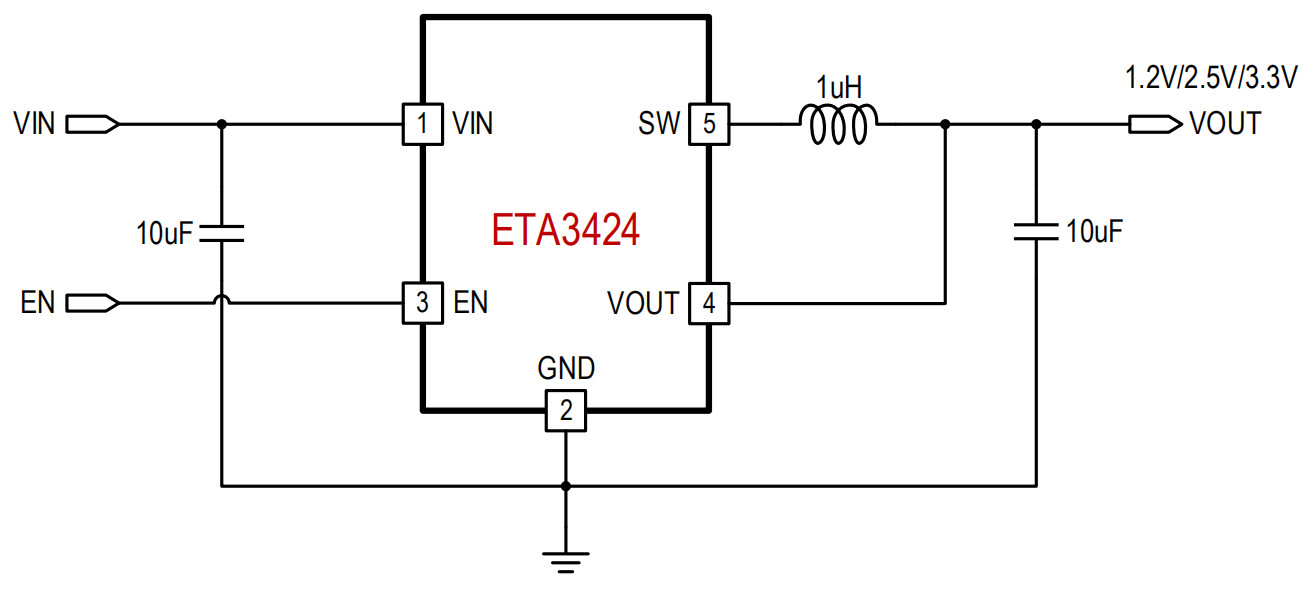

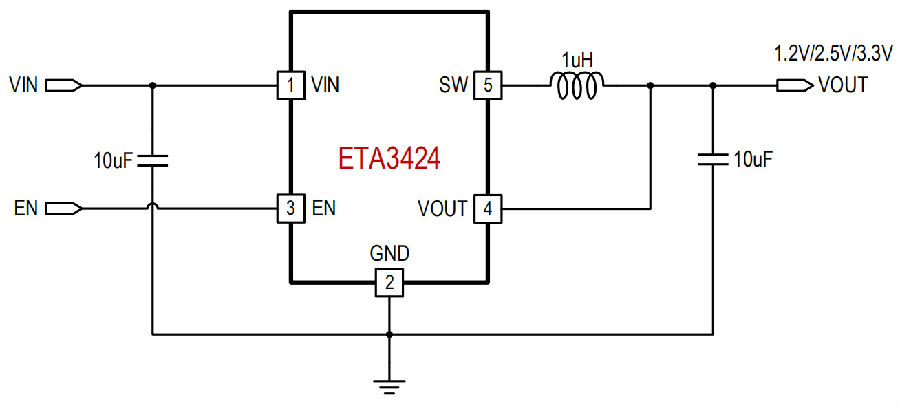

應用電路圖：
