| 型號： | ETA3525FSG |
| 廠 商： | 中國 |
| 品牌/商標: | ETA |
| 產品類別： | 鈺泰/ETA- |
| 聯系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
ETA（鈺泰） ETA3525FSG SOT-563 2MHz、3A、COT同步降壓轉換器
2MHz, 3A, COT Synchronous Step-down Converter in SOT563
The ETA3525 is a high-efficiency, DC-to-DC step-down switching regulator, capable of delivering up to 3A of output current. The device operates from an input voltage range of 2.5V to 5.5V and provides output voltages from 0.6V to VIN, making the ETA3525 ideal for low voltage power conversions.
Features
Up to 96% Efficiency
Up to 3A Max Output Current
Adaptive COT Control
Ultra-fast Load Transient Response
Output Discharge
2MHz Switching Frequency
Forced PWM Mode
1% Feedback Accuracy
Adjustable Output Voltage from 0.6V
Cycle-by-cycle Over Current Protection
Short Circuit Protection with Hiccup Mode
Stable with Low-ESR Output Ceramic Capacitors
Available in SOT563 Package
RoHS Compliant

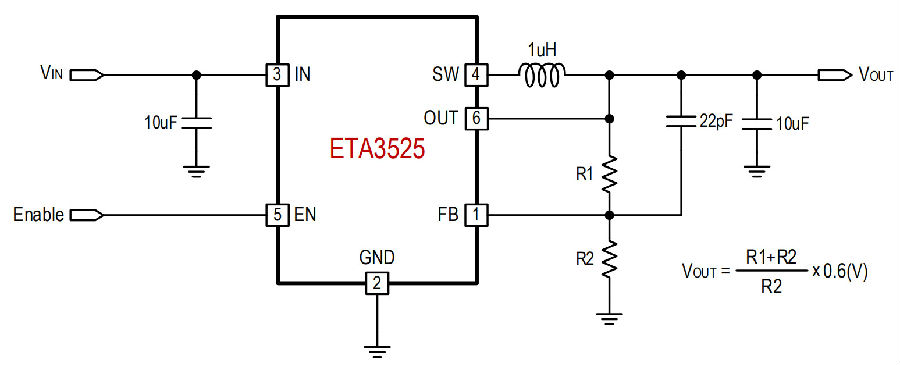

應用電路圖：
