上海鈺泰（ETA）限流可調的負載開關限流器ETA6023  ETA6023S2F-T，科瑞芯深圳熱銷

      The ETA6023 is a load switch which provides full protection to systems and loads which may encounter large current conditions. ETA6023 offers a 95mΩ current-limited switch which can operate over an input voltage range of 2.5-5.5V. The current limit can be externally programmed by a precision resistor, ranges from 75mA to 1.7A. Switch control is by a logic input (EN) capable of interfacing directly with low voltage control signals. Current is prevented from flowing when the switch is off and the output voltage is higher than the input voltage. ETA6023 also features thermal shutdown protection which shuts off the switch to prevent damage to the part when a continuous over-current condition causes excessive heating. When the switch current reaches the current limit, the parts operate in a constant-current mode to prohibit excessive currents from causing damage. The ETA6023 will not turn off after a current limit fault, but will rather remain in the constant current mode indefinitely.

產品型號：ETA6023S2F-T

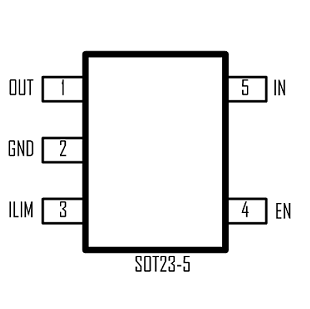

封裝：SOT23-5

包裝：3000pcs/盤

產品應用：

• 智能手機

• 平板電腦

• 智能機頂盒

• USB 3G上網卡

• PC和筆記本電腦

• USB dongle

• 其他USB接口產品
