產品詳情

18V/4A高壓同步降壓轉換器ETA1486，ETA1486E8A-T鈺泰原裝供應

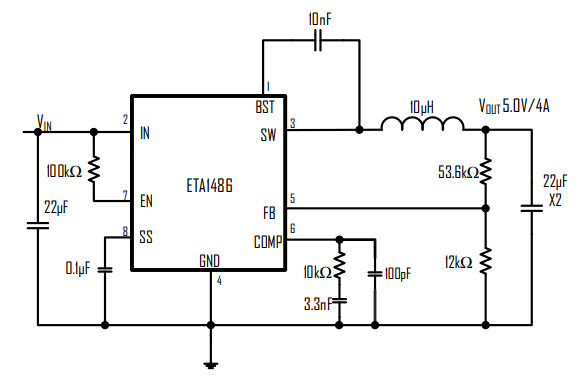

      The ETA1486 is a wide input range, high-efficiency, DC-toDC step-down switching

regulator, capable of delivering up to 4A of output current. Current mode PWM

control allows the use of small external components, such as ceramic input and

output caps, as well as small inductors, while still providing low output ripples. On top

of the integrated internal synchronous rectifier that eliminates external Schottky

diode, ETA1486 also employs a proprietary control scheme that switches the device

into a power save mode during light load, thereby extending the range of high

efficiency operation. Therefore, ETA1486 is a much superior solution in comparison to

other competitions in terms of efficiency and cost.

產品型號：ETA1486E8A-T

封裝：ESOP-8

產品應用：機頂盒、LCDTV、LCD顯示器、家庭網關、無線路由器、玩具、車載DVD、Irobot

                 自動掃地機、AC供電的其他電子產品。

產品特性：

• Wide Input Operating Range from 4.5V to 18V

•  High Efficiency: Up to 95% at Light Load

•  Capable of Delivering 4A

•  No External Schottky Diode Needed

•  Inductor Short Circuit Protection

•  Current Mode control

•  0.923V Reference for Low Output voltages

•  Logic Control Shutdown

•  Thermal shutdown and UVLO

•  Available in ESOP8 Package
