產(chǎn)品詳情

ETA9338 Tiny PMU with 3 channels of 1.5A Synchronous Bucks

產(chǎn)品型號(hào)：ETA9338D3M

封裝：DFN3X3-12

品牌：上海鈺泰

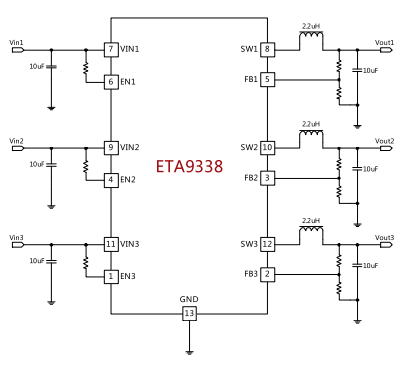

產(chǎn)品原理圖：

                   The ETA9338 is a Power Management Unit (PMU) with 3 channels of high-

efficiency, DC-to-DC step-down switching regulator, capable of delivering up to 1.5A

of output current. The devices operate from an input voltage range of 2.6V to 5.5V

and provide output voltages from 0.6V to VIN, making the ETA9338 ideal for low

voltage power conversions. Running at a fixed frequency of 1.5MHz allows the use of

small inductance value and low DCR inductors, thereby achieving higher efficiencies.

Other external components, such as ceramic input and output caps, can also be small

due to higher switching frequency, while maintaining exceptional low noise output

voltages.
