上海鈺泰（ETA) 2A開關充電器ETA9741，ETA9741E8A現貨熱銷

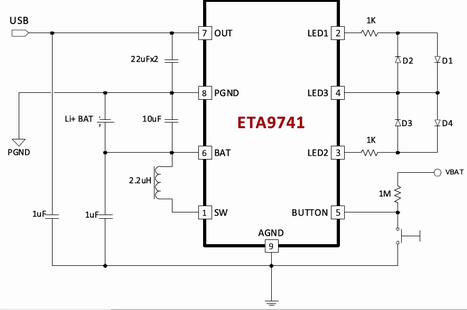

        ETA9741 is a switching Li-Ion battery charger capable of delivering 2A of charging current to

the battery and also capable of delivering up to 5V/2.4A in boost operation, with high efficiency in

both charging mode and boost mode. It also includes a fuel gauge system for power indication.

For charging, it uses a proprietary control scheme that eliminates the current sense resistor for

conventional constant current control, maximizing efficiency, reducing charging time and reducing

costs. It can also output a 5V voltage in the reversed direction by boosting from the battery.

ETA9741產品特點：

• ETA9741是5V-2A充放電的移動電源芯片

• 常開5V

• 帶有LED手電筒

• 固定5V-2.1A充電

• 自動負載啟動

• 內置9V耐壓能力

• 可用于移動電源

• 自帶4個LED電量燈

• 采用了ESOP8封裝。
