VL806——威盛USB 3.0主機控制器芯片

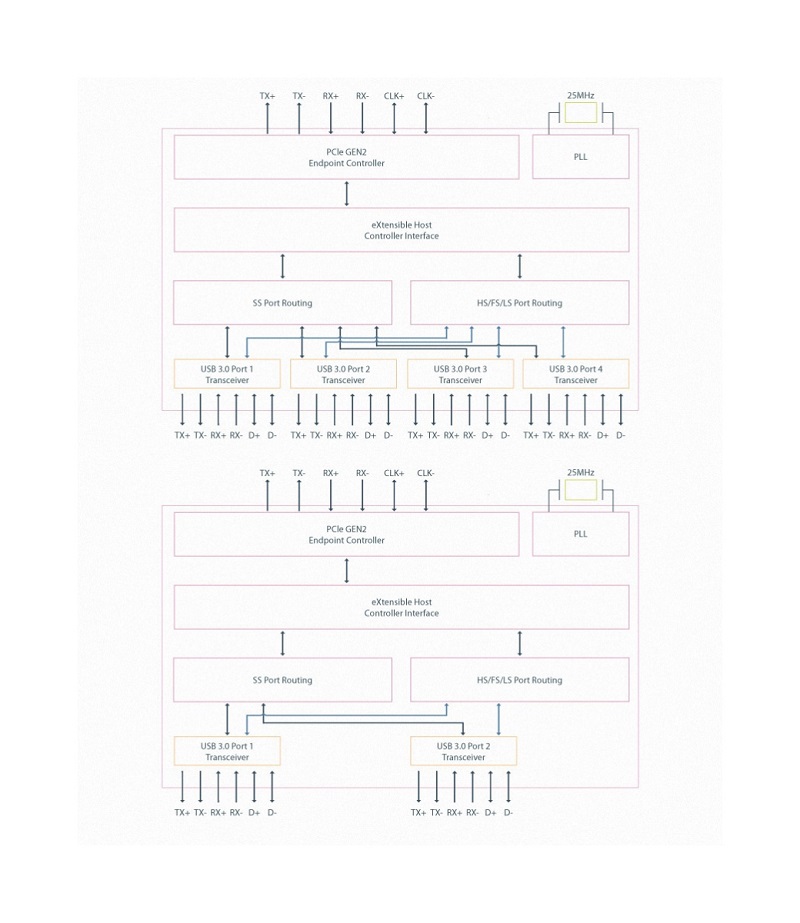

System Overview
The VIA Lab’s VL805 (4-Port)/VL806 (2-Port) is a USB 3.0 Host controller, which enables a PCI Express equipped platform to interface with USB Super-Speed (5 Gbps), High-Speed (480 Mbps), Full-Speed (12 Mbps), and Low-Speed (1.5 Mbps) devices. The root hub consists of four downstream facing ports enabling the simultaneous operation of multiple peripheral devices.
The VIA Lab’s VL805/VL806 complies with the Universal Serial Bus 3.0 Specification and Intel&'s eXtensible Host Controller Interface (xHCI), and is fully backward compatible with USB 2.0 and 1.1 specifications, ensuring seamless connectivity of legacy USB devices. VL805/VL806 have a PCI Express 2.0 x1 interface backwards compatible with PCI Express 1.0 and is perfectly suited for both PC Host and Add-In Card applications.
Applications
● Motherboard
● Notebook/Netbook
● Express Card
● Add-in Card
● Embedded System
● Docking Station
