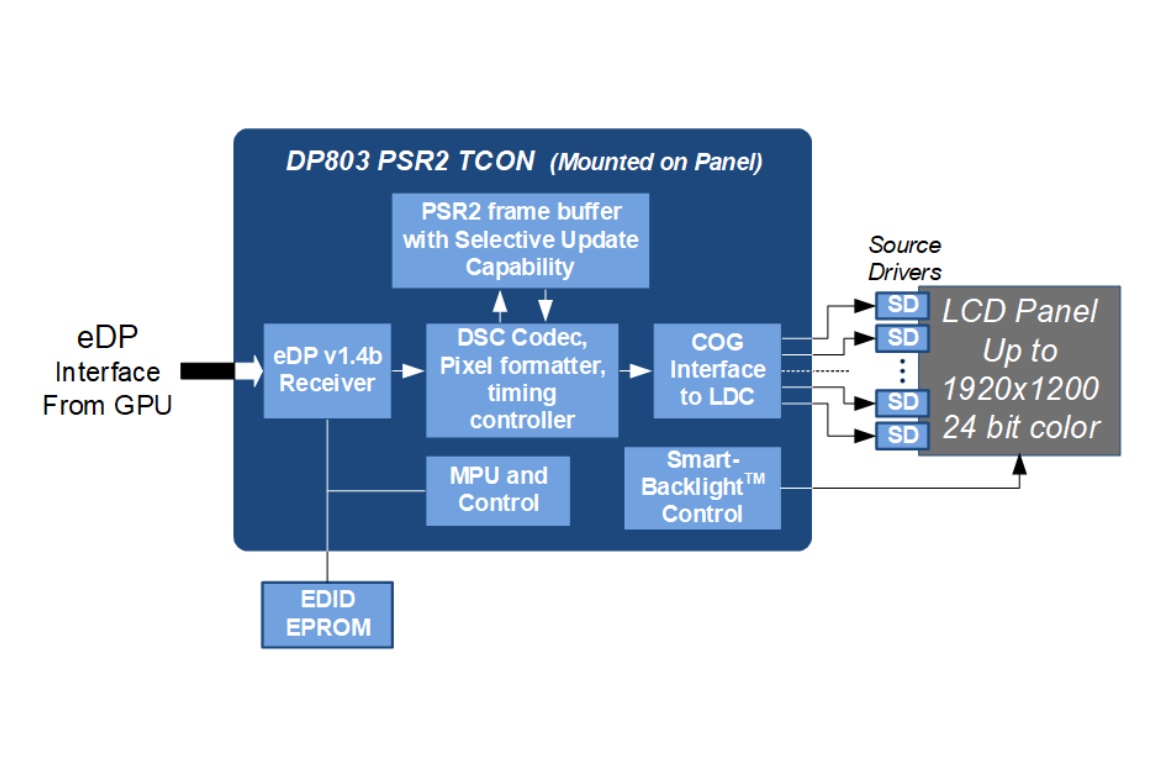

PARADE譜瑞 DP803TQFN66G-A3 LCD時序控制器

Features

● Embedded DisplayPort? Input

Compliant to VESA Embedded DisplayPort? Standard 1.4b

Supports 1 or 2 lane main link configurations and 2.7 or 1.62-Gbps link rates

Supports full link training, fast link training, and no link training

Supports 18/24-bit RGB color format input

Supports DisplayPort? standard SSC 0.5% down-spreading

● PSR (Panel Self Refresh)

Supports Panel Self Refresh Ver. 1 (PSR) introduced in eDP v1.3

Supports Panel Self Refresh with Selective Update (PSR2) introduced in eDP v1.4b, with or without AUX Frame Sync

Supports Intel Media Buffer Optimization (MBO)

Supports PSR/PSR2 with up to 1920×1200 resolution and 24-bit RGB color format

Supports Single Frame Update

● Refresh Rate Switching Mode

Supports seamless Display Refresh Rate Switching (sDRRS), Dynamic Refresh Rate (DRR), and nvDPS co-existing with PSR

Supports Microsoft 48Hz video playback mode

Support AMD Free Sync and VESA Adaptive Sync

Supports Nvidia G-Sync (Direct Drive type G-sync)

● Content Protection

Supports eDP authentication options: Alternate Scramble Reset (ASSR)

● Panel Interface

Supports all sized panels up to 1920×1200, 18/24-bit RGB native color format

Supports point to point COG interfaces up to 2D 4-ports (TQFN)/ 2D 6-ports (WFBGA) or 1D 6-ports

COG interface pin swapping and internal data swapping offers flexible TCON PCB design

Supports additional Sink-generated SSC clock modulation on COG interface: center spreading from 0.25% to 2.0%

● TCON Interface

Supports dual gate and triple gate pixel structures

Integrated TCON with programmable TCON control signal generation

Fully programmable Row Driver and Column Driver control I/O

● Video Processing

CrystalFree technology – no external timing reference needed

Stores LUT contents in EEPROM to support Gamma Correction, Color Engine, and FRC

Supports programmable BIST or Aging patterns

Supports VESA Display Stream Compression (DSC)

● Backlight Control

Parade’s exclusive Smart-Backlight? feature for color and power optimization

● Control Interface

I2C master for loading register initial values, or for functional expansion

● Hardware driven power management

● Built-in ESD Protection

HBM 8kV, MM 400V, CDM 2000V

● Package Options

66-pin 5×10 mm2 TQFN RoHS halogen free package

102-ball 9×3.5 mm2 WFBGA RoHS halogen free package
