| 型號： | LP6452AF |
| 廠 商： | |
| 品牌/商標: | 微源半導體 |
| 產品類別： | 集成電路/IC- AC/DC電源芯片 |
| 聯系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
LP6452AF 微源同步降壓轉換器 SOT563(FC)封裝
General Description
The LP6452AT/F is a synchronous buck converter supporting up to 2A output current. The LP6452AT/F employs an adaptive constant-on-time (COT) control scheme to achieve fast load transient response. The external components are minimized, requiring only one inductor, two resistors, and two capacitors.
The LP6452AT/F supports both aluminum polymer capacitors and ceramic capacitors without extra compensation components.
The LP6452AT/F integrates PFM (Pulse Frequency Modulation) operation, which helps maintain the system efficiency at light load. The LP6452AT/F also integrates multiple protection functions, i.e., over-current protection (OCP), over-temperature protection (OTP), under-voltage lockout (UVLO), and short circuit protection (SCP).

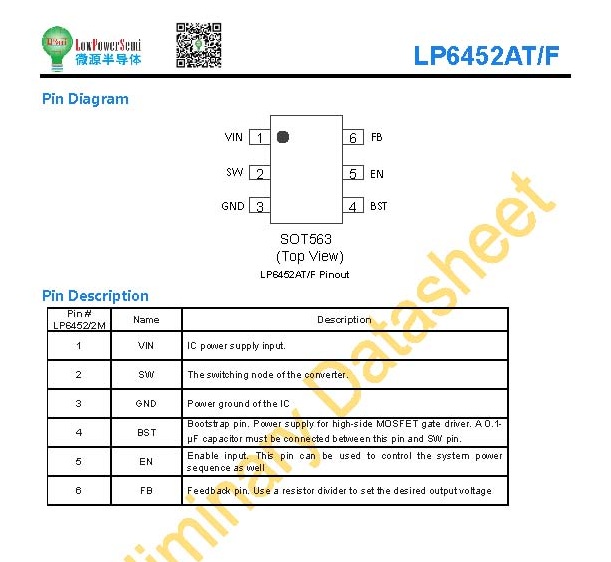

The LP6452AT/F is available in a small 6-pin 1.6mmx1.6mm SOT563 package.
Applications
● Industrial PC
● Network/digital video recorder (NVR/DVR)
● TV and TV box
● 12V Industrial bus applications
