| 型號： | DWT5R604M |
| 廠 商： | |
| 品牌/商標: | DOWELL/敦為 |
| 產品類別： | 場效應管/MOSFETs- 20-100V/低壓MOS管 |
| 聯系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |

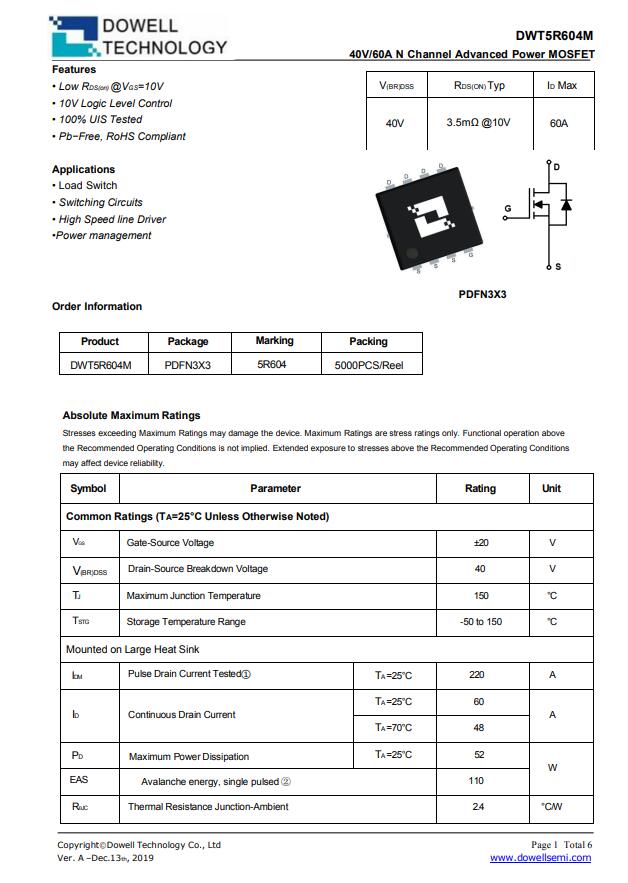

代理商供應 DWT5R604M 敦為N溝道MOSFET
Features
● Low RDS(on)@VGS=10V
● 10V Logic Level Control
● 100% UIS Tested
● Pb−Free, RoHS Compliant
Applications
● Load Switch
● Switching Circuits
● High Speed line Driver
● Power management
Absolute Maximum Ratings
Common Ratings (TA=25°C Unless Otherwise Noted)
● Gate-Source Voltage: +20V
● Drain-Source Breakdown Voltage: 40V
● Maximum Junction Temperature: 150°C
● Storage Temperature Range: -50 to 150°C
Mounted on Large Heat Sink
● Pulse Drain Current Tested: 220A
● Continuous Drain Current
TA=25°C: 60A
TA=70°C: 48A
● Maximum Power Dissipation: 52W
● Avalanche energy, single pulsed: 110W
● Themal Resistance Junction-Ambient: 24°C/W
