G2898KD1U 雙超低導(dǎo)通電阻負(fù)載開關(guān)芯片 臺灣致新
General Description
The G2898 is dual N-channel MOSFET power switch
designed for high-side load-switching application. The
device has a typical RDS(ON) of 16m and the output
current is limited to 6A. Each channel is controlled by
an on/off input (EN1, EN2) independently, which is
suitable for interfacing directly with low-voltage I/O
ports.
In the G2898, a 250 on-chip load resistor is added
for quick output discharge (QOD) when the switch is
turned off. Moreover, the controlled rise time can be
adjusted by using a ceramic capacitor on the CTx pins
in order to prevent in-rush current at start-up time.

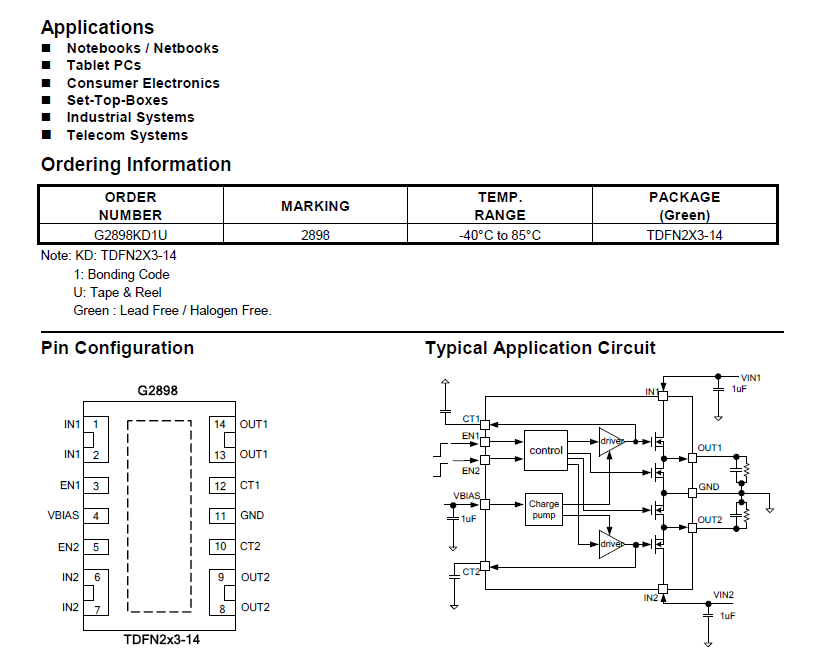

The G2898 is available in 14 pin TDFN package.
Applications
Notebooks / Netbooks
Tablet PCs
Consumer Electronics
Set-Top-Boxes
Industrial Systems
Telecom Systems
